Series Drum Truck

Technical Specs

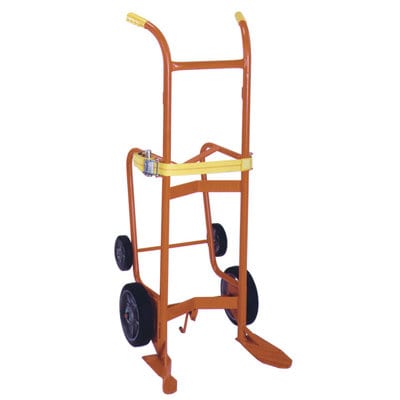

Model #: 45BT Width: 24 Height: 60 Depth: 24 Material of Construction: Steel Weight: 84.5 Capacity: 1000 ProdType: Drum Equipment UOM: EA Wheel Size: 10 Wheel Type: Moldon Rubber Caster Size: N/A Caster Type: N/A Options: N/A Cubic Ft: 20

Extended Information

Heavy duty, double-welded joints, 1„ structural pipe frame. Self standing or with kick stand for upright storage. Handles all poly and fiber drums except overpacks (use 45BT for overpacks). Replaceable �feet� and belt, Part 150303. Floating axle reduces effort required to break over and balance load. With wheels resting on floor, 27„ to center of belt. Steel, poly & fiber drums.

Technical Specs

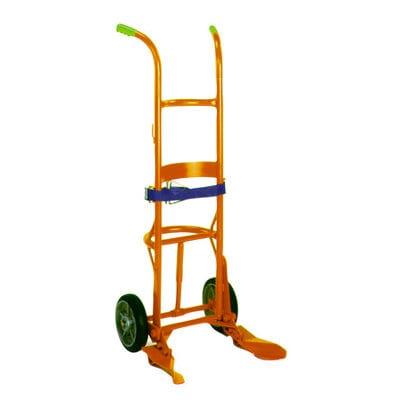

Model #: 45BTW Width: 23.75 Height: 59.5 Depth: 24 Material of Construction: Steel Weight: 63.5 Capacity: 1000 ProdType: Drum Equipment UOM: EA Wheel Size: 10 Wheel Type: Polyolefin Caster Size: N/A Caster Type: N/A Options: N/A Cubic Ft: 19.6267361111111

Extended Information

Heavy duty, double-welded joints, 1„ structural pipe frame. Self standing or with kick stand for upright storage. Recommended primarily for handling of overpacks. Wide �feet� eliminate the risk of drums being punctured by nose prongs. Floating axle reduces effort required to break over and balance load. With wheels resting on floor, 27„ to center of belt. Replaceable �feet� Part 240115 and belt, Part 150304. Steel, poly & fiber drums.

Technical Specs

Model #: 50BT Width: 23.75 Height: 57.5 Depth: 25 Material of Construction: Steel Weight: 86 Capacity: 1000 ProdType: Drum Equipment UOM: EA Wheel Size: 10 Wheel Type: Moldon Rubber Caster Size: N/A Caster Type: N/A Options: N/A Cubic Ft: 19.7573061342593

Extended Information

Heavy duty, double-welded joints, 1„ structural pipe frame. Self standing or with kick stand for upright storage. Recommended primarily for handling of overpacks. Wide �feet� eliminate the risk of drums being punctured by nose prongs. Floating axle reduces effort required to break over and balance load. With wheels resting on floor, 27„ to center of belt. Replaceable �feet� Part 240115 and belt, Part 150304. Steel, poly & fiber drums.

Technical Specs

Model #: 50BTW Width: 24 Height: 57.5 Depth: 25 Material of Construction: Steel Weight: 65 Capacity: 1000 ProdType: Drum Equipment UOM: EA Wheel Size: 10 Wheel Type: Polyolefin Caster Size: N/A Caster Type: N/A Options: N/A Cubic Ft: 19.9652777777778

Extended Information

Heavy duty, double-welded joints, 1„ structural pipe frame. Self standing or with kick stand for upright storage. Recommended primarily for handling of overpacks. Acts as a Poly Drum Truck or Drain Stand. Wide �feet� and belt Part #150303 eliminate the risk of drums being punctured by nose prongs and chime hooks. With two wheels resting on floor, 27„ to center of belt. Handles all poly drums (except overpacks). Steel, poly & fiber drums.

Technical Specs

Model #: ABT-10-SC-B Width: 25 Height: 60 Depth: 18.5 Material of Construction: Aluminum Weight: 60 Capacity: 1000 ProdType: Drum Equipment UOM: EA Wheel Size: 10 Wheel Type: Moldon Rubber Caster Size: N/A Caster Type: N/A Options: N/A Cubic Ft: 16.0590277777778

Extended Information

Heavy duty, double-welded joints, 1„ structural pipe frame. Self standing or with kick stand for upright storage. Recommended primarily for handling of overpacks. Acts as a Poly Drum Truck or Drain Stand. Wide �feet� and belt Part #150303 eliminate the risk of drums being punctured by nose prongs and chime hooks. With two wheels resting on floor, 27„ to center of belt. Handles all poly drums (except overpacks). Steel, poly & fiber drums.
