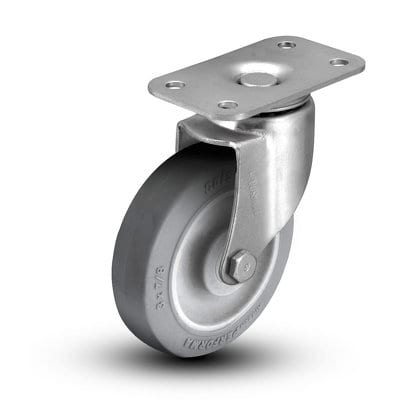

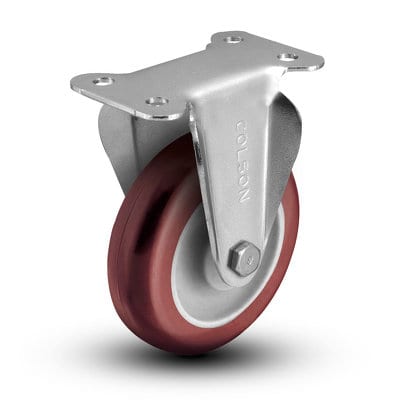

Large Top Plate Swivel and Rigid
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 1-5/8" | 7/8" | 60 | Performa Rubber | 2-9/16 | 1-3/4 | 3/8 | Delrin | 1.01656.441 | |
| 1-5/8" | 7/8" | 75 | Polyolefin | 2-9/16 | 1-3/4 | 3/8 | Delrin | 1.01656.52 | |
| 2" | 7/8" | 75 | Performa Rubber | 2-3/4 | 1-15/16 | 1/2 | Delrin | 1.02256.441 | |
| 2" | 7/8" | 75 | Polyolefin | 2-3/4 | 1-15/16 | 1/2 | Delrin | 1.02256.52 | |
| 2" | 7/8" | 75 | Cushion Rubber | 2-3/4 | 1-15/16 | 1/2 | Ball | 1.02256.45 | |
| 2" | 7/8" | 75 | Hard Rubber | 2-3/4 | 1-15/16 | 1/2 | Ball | 1.02256.55 | |
| 3" | 7/8" | 75 | Performa Rubber | 3-7/8 | 2-9/16 | 3/4 | Delrin | 1.03056.441 | 1.03010.441 |
| 3" | 7/8" | 75 | Polyurethane HI-TECH | 3-7/8 | 2-9/16 | 3/4 | Delrin | 1.03056.91 | 1.03010.91 |
| 3" | 7/8" | 75 | Polyolefin | 3-7/8 | 2-9/16 | 3/4 | Delrin | 1.03056.53 | 1.03010.53 |
