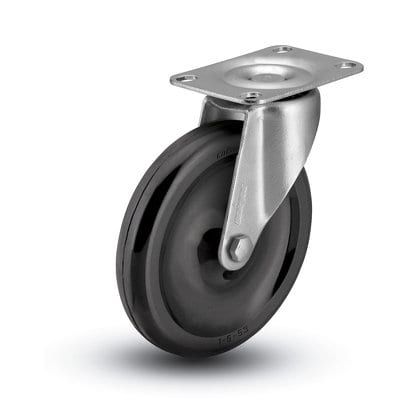

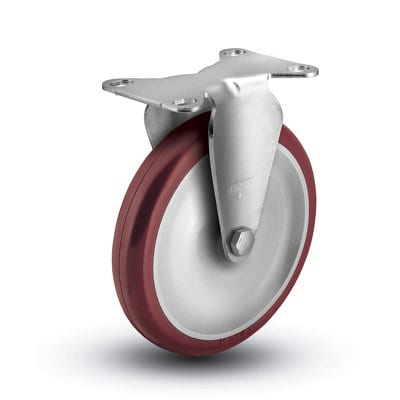

Top Plate Swivel and Rigid
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 3" | 7/8" | 100 | Polyurethane HI-TECH | 3-7/8 | 2-13/16 | 1-1/4 | Delrin | 1.03356.91 | 1.03008.91 |
| 3" | 7/8" | 125 | Performa Rubber | 3-7/8 | 2-13/16 | 1-1/4 | Delrin | 1.03356.441 | 1.03008.441 |
| 3" | 7/8" | 125 | Polyolefin | 3-7/8 | 2-13/16 | 1-1/4 | Delrin | 1.03356.53 | 1.03008.53 |
| 4" | 7/8" | 125 | Polyurethane HI-TECH | 4-7/8 | 3-7/16 | 1-1/2 | Delrin | 1.04356.91 | 1.04308.91 |
| 4" | 7/8" | 135 | Performa Rubber | 4-7/8 | 3-7/16 | 1-1/2 | Delrin | 1.04356.441 | 1.04308.441 |
| 4" | 7/8" | 135 | Polyolefin | 4-7/8 | 3-7/16 | 1-1/2 | Delrin | 1.04356.53 | 1.04308.53 |
| 5" | 7/8" | 140 | Polyurethane HI-TECH | 5-7/8 | 4-1/16 | 1-3/4 | Delrin | 1.05356.91 | 1.05308.91 |
| 5" | 7/8" | 145 | Performa Rubber | 5-7/8 | 4-1/16 | 1-3/4 | Delrin | 1.05356.441 | 1.05308.441 |
| 5" | 7/8" | 145 | Polyolefin | 5-7/8 | 4-1/16 | 1-3/4 | Delrin | 1.05356.53 | 1.05308.53 |
