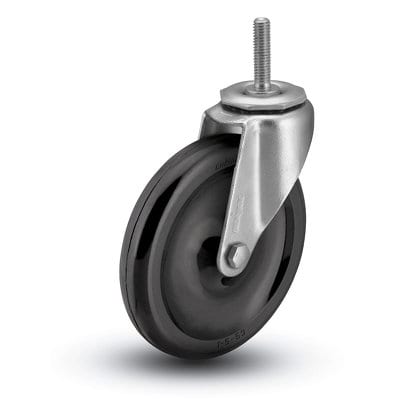

Colson 1 Series Straight Thread Stem Models
Wheel Diameter | Thread With | Capacity | Wheel Description | Stem Casters | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
---|---|---|---|---|---|---|---|---|---|
1-5/8" | 7/8" | 60 | Performa Rubber | B54561A | 2-1/2 | 1-3/4 | 1/2 | Delrin | 1.01654.52 |
1-5/8" | 7/8" | 75 | Polyolefin | A444561A | 2-1/2 | 1-3/4 | 1/2 | Delrin | 1.01654.441 |
2" | 7/8" | 75 | Performa Rubber | A444522A | 2-11/16 | 1-15/16 | 1/2 | Delrin | 1.02254.441 |
2" | 7/8" | 75 | Polyolefin | B54522A | 2-11/16 | 1-15/16 | 1/2 | Delrin | 1.02254.52 |
2" | 7/8" | 75 | Cushion Rubber | E41522A | 2-11/16 | 1-15/16 | 1/2 | Ball | 1.02251.45 |
2" | 7/8" | 75 | Hard Rubber | E51522A | 2-11/16 | 1-15/16 | 1/2 | Ball | 1.02251.55 |
3" | 7/8" | 75 | Performa Rubber | A441503A | 3-13/16 | 2-9/16 | 1-3/4 | Delrin | 1.03051.441 |
3" | 7/8" | 75 | Polyurethane HI-TECH | A91503A | 3-13/16 | 2-9/16 | 1-3/4 | Delrin | 1.03051.91 |
3" | 7/8" | 75 | Polyolefin | C51503A | 3-13/16 | 2-9/16 | 1-3/4 | Delrin | 1.03051.53 |
3" | 7/8" | 100 | Polyurethane HI-TECH | A94533A | 3-3/4 | 2-13/16 | 1 | Delrin | 1.01654.52 |
3" | 3/4" | 125 | Performa Rubber | A444533A | 3-3/4 | 2-13/16 | 1-1/8 | Delrin | 1.01654.441 |
3" | 3/4" | 125 | Polyolefin | C54533A | 3-3/4 | 2-13/16 | 1-1/8 | Delrin | 1.02254.441 |
4" | 3/4" | 125 | Polyurethane HI-TECH | A94534A | 4-3/4 | 3-7/16 | 1-1/8 | Delrin | 1.02254.52 |
4" | 3/4" | 135 | Performa Rubber | A444534A | 4-3/4 | 3-7/16 | 1-3/8 | Delrin | 1.02251.45 |
4" | 3/4" | 135 | Polyolefin | C54534A | 4-3/4 | 3-7/16 | 1-3/8 | Delrin | 1.02251.55 |
5" | 3/4" | 140 | Polyurethane HI-TECH | A94535A | 5-3/4 | 4-1/16 | 1-1/4 | Delrin | 1.03051.441 |
5" | 3/4" | 145 | Performa Rubber | A444535A | 5-3/4 | 4-1/16 | 1-5/8 | Delrin | 1.03051.91 |
5" | 3/4" | 145 | Polyolefin | C54535A | 5-3/4 | 4-1/16 | 1-1/8 | Delrin | 1.03051.53 |
