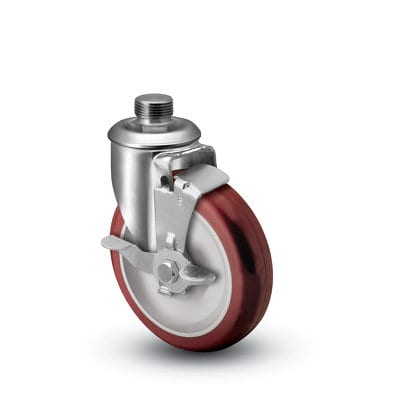

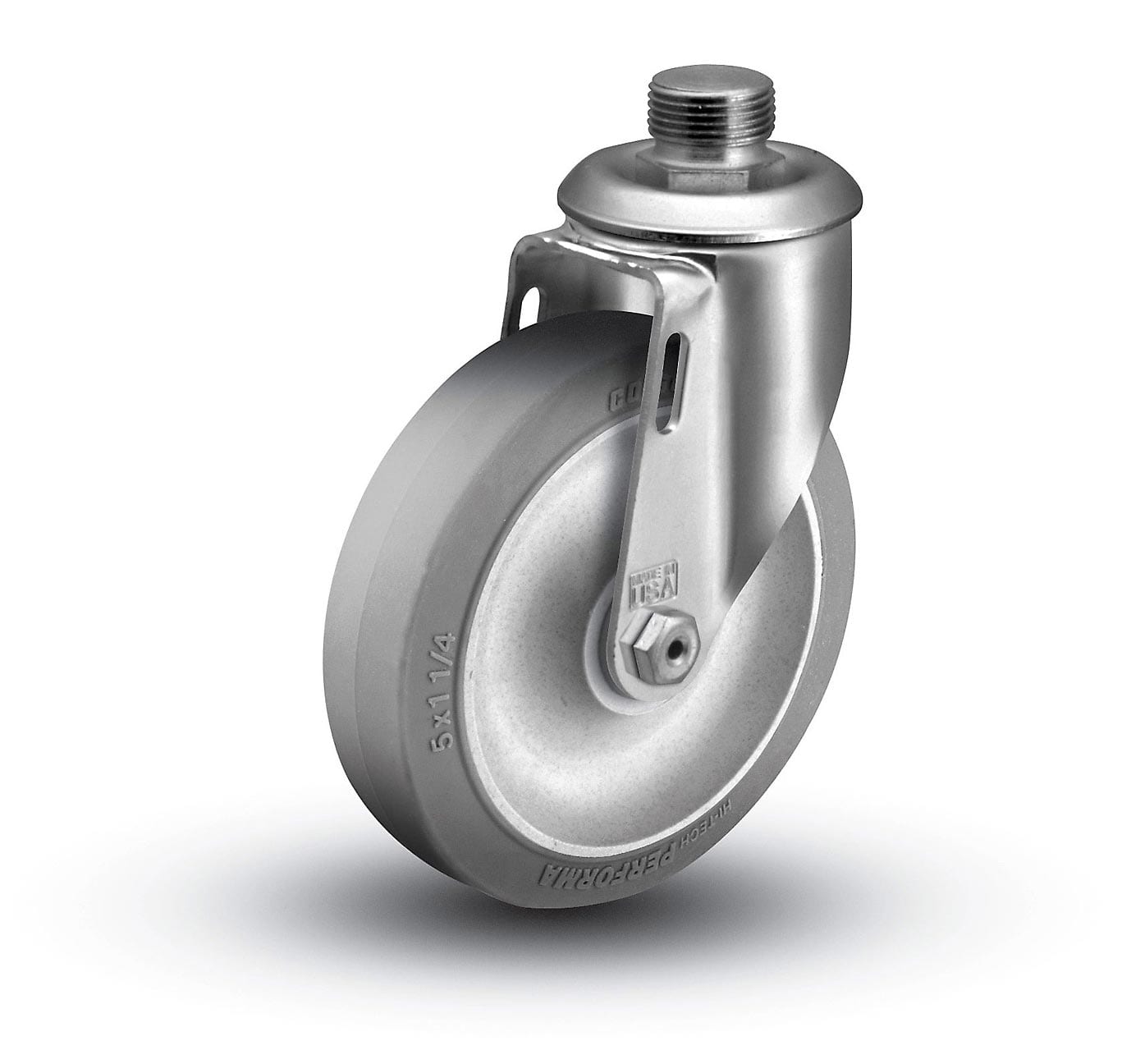

Colson 2 Series Pipe Thread Stem Models
| Wheel Diameter | Thread With | Capacity | Wheel Description | Stem Casters | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/4" | 125 | Performa Rubber (Conductive Flat) | 4E443522B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02253.445(COND) |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | A443522B | 4 | 2-13/32 | 1-3/4 | Delrin | 2.02253.441 |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | E443522B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02253.445 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | C53522B | 4 | 2-13/32 | 1-3/4 | Delrin | 2.02253.53 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | E53522B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02253.55 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A93522B | 4 | 2-13/32 | 1-1/2 | Delrin | 2.02253.91 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E93522B | 4 | 2-13/32 | 1-1/2 | Ball | 2.02253.95 |
| 2-1/2" | 1-1/4" | 300 | Cast Iron | B13522B | 4 | 2-13/32 | 2-1/8 | Sleeve | 2.02253.12 |
| 2-1/2" | 1-7/16" | 300 | Phenolic | I133522B | 4 | 2-13/32 | 1-3/4 | Roller | 2.02253.319 |
| 3" | 1-1/4" | 150 | Rubber HI-TECH | B43533B | 4-1/4 | 2-21/32 | 2 | Plain | 2.03353.42 |
| 3" | 1-1/4" | 200 | Polyurethane HI-TECH | B93533B | 4-1/4 | 2-21/32 | 2 | Plain | 2.03353.92 |
| 3" | 1-1/4" | 200 | Polyolefin | B53533B | 4-1/4 | 2-21/32 | 2 | Delrin | 2.03353.52 |
| 3" | 1-15/32" | 300 | Phenolic | I133533B | 4-1/4 | 2-21/32 | 2-3/4 | Roller | 2.03353.319 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Conductive/Round) | 4E653523B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03253.565(COND) |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | A653523B | 4-13/16 | 2-29/32 | 2-1/4 | Delrin | 2.03253.561 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | E653523B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03253.565 |
| 3-1/2" | 1-1/4" | 225 | Performa Rubber (Conductive Flat) | 4E443523B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03253.445(COND) |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | C53523B | 4-13/16 | 2-29/32 | 2-1/8 | Delrin | 2.03253.53 |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | E53523B | 4-13/16 | 2-29/32 | 2-1/8 | Ball | 2.03253.55 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | A443523B | 4-13/16 | 2-29/32 | 2-1/8 | Delrin | 2.03253.441 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | E443523B | 4-13/16 | 2-29/32 | 2-1/8 | Ball | 2.03253.445 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A93523B | 4-13/16 | 2-29/32 | 1-3/4 | Delrin | 2.03253.91 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E93523B | 4-13/16 | 2-29/32 | 1-3/4 | Ball | 2.03253.95 |
| 3-1/2" | 1-1/4" | 300 | Thermo High Temp | THGB53522B | 4-13/16 | 2-29/32 | 3-1/8 | Plain | 2.02253.52(HT) |
| 3-1/2" | 1-1/4" | 300 | Cast Iron | B13523B | 4-13/16 | 2-29/32 | 3 | Sleeve | 2.03253.12 |
| 4" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C163524B | 5-1/4 | 3-7/32 | 3 | Teflon | 2.04253.613 |
| 4" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E443524B | 5-1/4 | 3-7/32 | 2-1/4 | Ball | 2.04253.445(COND) |
| 4" | 1-1/4" | 275 | Polyolefin | C53524B | 5-1/4 | 3-7/32 | 2-1/4 | Delrin | 2.04253.53 |
| 4" | 1-1/4" | 275 | Polyolefin | E53524B | 5-1/4 | 3-7/32 | 2-1/4 | Ball | 2.04253.55 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | A93524B | 5-1/4 | 3-7/32 | 2 | Delrin | 2.04253.91 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | E93524B | 5-1/4 | 3-7/32 | 2 | Ball | 2.04253.95 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | A443524B | 5-1/4 | 3-7/32 | 2-1/4 | Delrin | 2.04253.441 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | E443524B | 5-1/4 | 3-7/32 | 2-1/4 | Ball | 2.04253.445 |
| 4" | 1-1/4" | 300 | Thermo High Temp | THGB53524B | 5-1/4 | 3-7/32 | 3-1/4 | Plain | 2.04253.52(HT) |
| 4" | 1-1/4" | 300 | Cast Iron | B13524B | 5-1/4 | 3-7/32 | 3-1/2 | Sleeve | 2.04253.12 |
| 5" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C163525B | 6-5/16 | 3-13/16 | 3 | Teflon | 2.05253.613 |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E443525B | 6-5/16 | 3-13/16 | 3 | Ball | 2.05253.445(COND) |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive/Round) | 4E653525B | 6-5/16 | 3-13/16 | 3 | Ball | 2.05253.565(COND) |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | A653525B | 6-5/16 | 3-13/16 | 3 | Delrin | 2.05253.561 |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | E653525B | 6-5/16 | 3-13/16 | 3 | Ball | 2.05253.565 |
| 5" | 1-1/4" | 300 | Polyolefin | C53525B | 6-5/16 | 3-13/16 | 2-3/4 | Delrin | 2.05253.53 |
| 5" | 1-1/4" | 300 | Polyolefin | E53525B | 6-5/16 | 3-13/16 | 2-3/4 | Ball | 2.05253.55 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | A93525B | 6-5/16 | 3-13/16 | 2-1/2 | Delrin | 2.05253.91 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | E93525B | 6-5/16 | 3-13/16 | 2-1/2 | Ball | 2.05253.95 |
| 5" | 1-1/4" | 300 | Cast Iron | B13525B | 6-5/16 | 3-13/16 | 3-3/4 | Sleeve | 2.05253.12 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | A443525B | 6-5/16 | 3-13/16 | 2-3/4 | Delrin | 2.05253.441 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | E443525B | 6-5/16 | 3-13/16 | 2-3/4 | Ball | 2.05253.445 |
| 5" | 1-1/4" | 325 | Thermo High Temp | THGB53525B | 6-5/16 | 3-13/16 | 3-3/4 | Plain | 2.05253.52(HT) |
