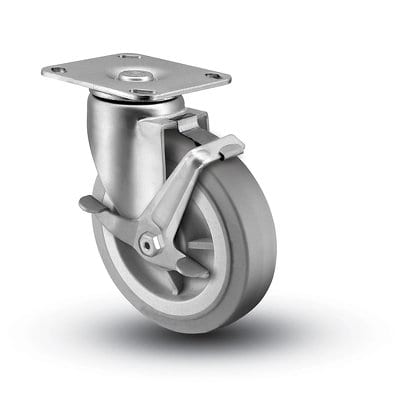

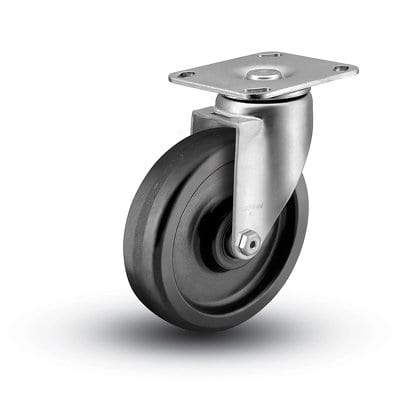

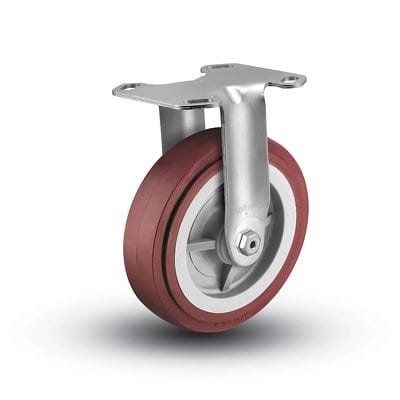

Colson 3 Series Plate Casters
| Wheel Diameter | Optional Bearings | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 3" | Delrin- PPBB | 1-1/2" | 250 | Performa Rubber (Flat Grey) | 4-5/16 | 3-1/8 | 2-1/2 | 3.00317.449 | 3.00308.449 |
| 3" | Delrin- PPBB | 1-1/2" | 300 | Polyolefin | 4-5/16 | 3-1/8 | 2-1/2 | 3.00317.809 | 3.00308.809 |
| 3" | Delrin- PPBB | 1-1/2" | 300 | Polyurethane HI-TECH | 4-5/16 | 3-1/8 | 2-1/2 | 3.00317.909 | 3.00308.909 |
| 3" | Delrin- PPBB | 1-1/2" | 400 | Phenolic | 4-5/16 | 3-1/8 | 2-1/2 | 3.00317.309 | 3.00308.309 |
| 3" | Delrin- PPBB- Bronze | 1-1/2" | 400 | Cast Iron | 4-5/16 | 3-1/8 | 3-3/4 | 3.00317.109 | 3.00308.109 |
| 3" | Plain- Bronze | 1-1/2" | 600 | Thermo High Temp | 4-5/16 | 3-1/8 | 2-1/2 | 3.00317.809 | 3.00308.809 |
| 4" | PPBB | 1-1/2" | 255 | Performa Rubber (Conductive Flat) | 5-3/16 | 3-5/8 | 2-2/3 | 3.00417.449(COND) | 3.00408.449(COND) |
| 4" | Delrin- PPBB | 1-1/2" | 325 | Performa Rubber (Flat Grey) | 5-3/16 | 3-5/8 | 2-2/3 | 3.00417.449 | 3.00408.449 |
| 4" | Delrin- PPBB | 1-1/2" | 375 | Polyolefin | 5-3/16 | 3-5/8 | 2-3/4 | 3.00417.809 | 3.00408.809 |
| 4" | Delrin- PPBB- Bronze | 1-1/2" | 400 | Maxim | 5-3/16 | 3-5/8 | 2-3/4 | 3.00417.509 | 3.00408.509 |
| 4" | Delrin- PPBB | 1-1/2" | 400 | Polyurethane HI-TECH | 5-3/16 | 3-5/8 | 2-3/4 | 3.00417.909 | 3.00408.909 |
| 4" | Delrin- PPBB | 1-1/2" | 400 | Phenolic | 5-3/16 | 3-5/8 | 2-3/4 | 3.00417.309 | 3.00408.309 |
| 4" | Delrin- PPBB- Bronze | 1-1/2" | 400 | Cast Iron | 5-3/16 | 3-5/8 | 4 | 3.00417.109 | 3.00408.109 |
| 4" | Plain- Bronze | 1-1/2" | 700 | Thermo High Temp | 5-3/16 | 3-5/8 | 2-3/4 | 3.00317.809 | 3.00308.809 |
| 5" | PPBB | 1-1/2" | 280 | Performa Rubber (Conductive Flat) | 5-3/16 | 3-7/8 | 3 | 3.00517.449(COND) | 3.00508.449(COND) |
| 5" | Delrin- PPBB | 1-1/2" | 350 | Performa Rubber (Flat Grey) | 5-3/16 | 3-7/8 | 3 | 3.00517.449 | 3.00508.449 |
| 5" | Delrin- PPBB | 1-1/2" | 400 | Polyolefin | 5-3/16 | 3-7/8 | 3 | 3.00517.809 | 3.00508.809 |
| 5" | Delrin- PPBB | 1-1/2" | 400 | Polyurethane HI-TECH | 5-3/16 | 3-7/8 | 3 | 3.00517.909 | 3.00508.909 |
| 5" | Delrin- PPBB | 1-1/2" | 400 | Phenolic | 5-3/16 | 3-7/8 | 3 | 3.00517.309 | 3.00508.309 |
| 5" | Delrin- PPBB- Bronze | 1-1/2" | 400 | Cast Iron | 5-3/16 | 3-7/8 | 4-1/2 | 3.00517.109 | 3.00508.109 |
| 5" | Plain- Bronze | 1-1/2" | 800 | Thermo High Temp | 5-3/16 | 3-7/8 | 3 | 3.00517.809 | 3.00508.809 |
| 6" | PPBB | 1-1/2" | 300 | Performa Rubber (Conductive Flat) | 7-3/16 | 4-5/8 | 2-2/3 | 3.00617.449(COND) | 3.00608.449(COND) |
| 6" | Delrin- PPBB | 1-1/2" | 375 | Performa Rubber (Flat Grey) | 7-3/16 | 4-5/8 | 2-2/3 | 3.00617.449 | 3.00608.449 |
| 6" | Delrin- PPBB | 1-1/2" | 400 | Polyolefin | 7-3/16 | 4-5/8 | 2-3/4 | 3.00617.809 | 3.00608.809 |
| 6" | Delrin- PPBB | 1-1/2" | 400 | Polyurethane HI-TECH | 7-3/16 | 4-5/8 | 2-3/4 | 3.00617.909 | 3.00608.909 |
| 6" | Delrin- PPBB | 1-1/2" | 400 | Phenolic | 7-3/16 | 4-5/8 | 2-3/4 | 3.00617.309 | 3.00608.309 |
| 6" | Delrin- PPBB- Bronze | 1-1/2" | 400 | Cast Iron | 7-3/16 | 4-5/8 | 4 | 3.00617.109 | 3.00608.109 |
