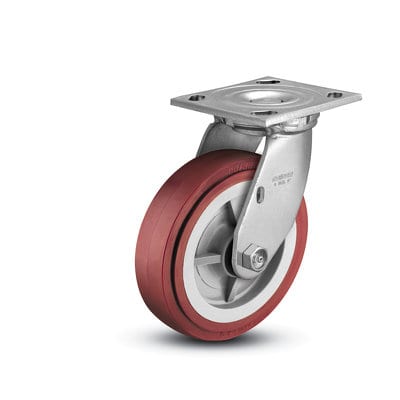

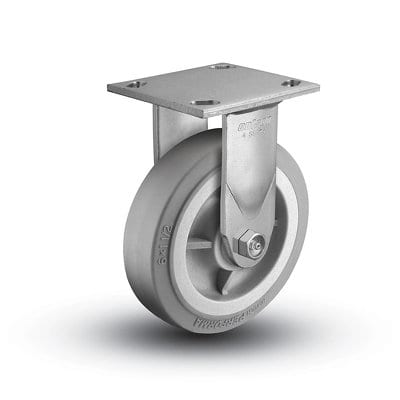

Colson 1-1/2" Wide Tread Swivel and Rigid Casters
| Wheel Diameter | Optional Bearings | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 3" | PPBB | 1-1/2" | 225 | Performa Rubber (Conductive Flat) | 5-1/8 | 3-1/16 | 3-1/4 | 4.03109.449(COND) | 4.03108.449(COND) |
| 3" | Delrin- PPBB | 1-1/2" | 250 | Performa Rubber (Flat Grey) | 5-1/8 | 3-1/16 | 3-1/4 | 4.03109.449 | 4.03108.449 |
| 3" | Delrin- Plain- PPBB | 1-1/2" | 300 | Polyolefin | 5-1/8 | 3-1/16 | 3-3/4 | 4.03109.819 | 4.03108.819 |
| 3" | Delrin- PPBB | 1-1/2" | 300 | Polyurethane HI-TECH | 5-1/8 | 3-1/16 | 3-1/4 | 4.03109.919 | 4.03108.919 |
| 3" | Delrin- PPBB | 1-1/2" | 425 | Cast Iron | 5-1/8 | 3-1/16 | 5 | 4.03109.119 | 4.03108.119 |
| 3" | Delrin- PPBB | 1-1/2" | 600 | Phenolic | 5-1/8 | 3-1/16 | 3-3/4 | 4.03109.319 | 4.03108.319 |
| 3" | Plain- Bronze | 1-1/2" | 600 | Thermo High Temp | 5-1/8 | 3-1/16 | 4-3/4 | 4.03109.819(HT) | 4.03108.819(HT) |
| 4" | PPBB | 1-1/2" | 255 | Performa Rubber (Conductive Flat) | 5-5/8 | 3-9/16 | 3-3/4 | 4.04109.449(COND) | 4.04108.449(COND) |
| 4" | Delrin- PPBB | 1-1/2" | 325 | Performa Rubber (Flat Grey) | 5-5/8 | 3-9/16 | 3-3/4 | 4.04109.449 | 4.04108.449 |
| 4" | Delrin- Plain- PPBB | 1-1/2" | 375 | Polyolefin | 5-5/8 | 3-9/16 | 4-3/4 | 4.04109.819 | 4.04108.819 |
| 4" | Delrin- PPBB | 1-1/2" | 400 | Polyurethane HI-TECH | 5-5/8 | 3-9/16 | 4 | 4.04109.919 | 4.04108.919 |
| 4" | Delrin- PPBB | 1-1/2" | 500 | Cast Iron | 5-5/8 | 3-9/16 | 5-1/4 | 4.04109.119 | 4.04108.119 |
| 4" | Delrin- PPBB | 1-1/2" | 500 | Phenolic | 5-5/8 | 3-9/16 | 3-3/4 | 4.04109.319 | 4.04108.319 |
| 4" | Plain- Bronze | 1-1/2" | 600 | Thermo High Temp | 5-5/8 | 3-9/16 | 4-3/4 | 4.04109.819(HT) | 4.04108.819(HT) |
| 4" | Delrin- Bronze- PPBB | 1-1/2" | 600 | Maxim | 5-5/8 | 3-9/16 | 3-3/4 | 4.04109.519 | 4.04108.519 |
| 5" | PPBB | 1-1/2" | 280 | Performa Rubber (Conductive Flat) | 6-1/2 | 4-1/4 | 4-1/8 | 4.05109.449(COND) | 4.05108.449(COND) |
| 5" | Delrin- PPBB | 1-1/2" | 350 | Performa Rubber (Flat Grey) | 6-1/2 | 4-1/4 | 4-1/8 | 4.05109.449 | 4.05108.449 |
| 5" | Delrin- Plain- PPBB | 1-1/2" | 450 | Polyolefin | 6-1/2 | 4-1/4 | 4-1/8 | 4.05109.819 | 4.05108.819 |
| 5" | Delrin- PPBB | 1-1/2" | 500 | Polyurethane HI-TECH | 6-1/2 | 4-1/4 | 4-1/8 | 4.05109.919 | 4.05108.919 |
| 5" | Delrin- PPBB | 1-1/2" | 500 | Cast Iron | 6-1/2 | 4-1/4 | 5-1/2 | 4.05109.119 | 4.05108.119 |
| 5" | Delrin- PPBB | 1-1/2" | 600 | Phenolic | 6-1/2 | 4-1/4 | 3-3/4 | 4.05109.319 | 4.05108.319 |
| 5" | Plain- Bronze | 1-1/2" | 600 | Thermo High Temp | 6-1/2 | 4-1/4 | 4-3/4 | 4.05109.819(HT) | 4.05108.819(HT) |
| 6" | PPBB | 1-1/2" | 300 | Performa Rubber (Conductive Flat) | 7-1/2 | 5 | 5 | 4.06109.449(COND) | 4.06108.449(COND) |
| 6" | Delrin- PPBB | 1-1/2" | 375 | Performa Rubber (Flat Grey) | 7-1/2 | 5 | 5 | 4.06109.449 | 4.06108.449 |
| 6" | Delrin- Plain- PPBB | 1-1/2" | 500 | Polyolefin | 7-1/2 | 5 | 4-1/8 | 4.06109.819 | 4.06108.819 |
| 6" | Delrin- PPBB | 1-1/2" | 600 | Polyurethane HI-TECH | 7-1/2 | 5 | 5 | 4.06109.919 | 4.06108.919 |
| 6" | Delrin- PPBB | 1-1/2" | 600 | Cast Iron | 7-1/2 | 5 | 6-1/2 | 4.06109.119 | 4.06108.119 |
| 6" | Delrin- PPBB | 1-1/2" | 800 | Phenolic | 7-1/2 | 5 | 4-1/4 | 4.06109.319 | 4.06108.319 |
| 8" | PPBB | 1-1/2" | 350 | Performa Rubber (Conductive Flat) | 7-1/2 | 5 | 5 | 4.08199.449(COND) | 4.08198.449(COND) |
| 8" | Delrin- PPBB | 1-1/2" | 500 | Performa Rubber (Flat Grey) | 7-1/2 | 5 | 5 | 4.08199.449 | 4.08198.449 |
| 8" | Delrin- Plain- PPBB | 1-1/2" | 600 | Polyolefin | 7-1/2 | 5 | 4-1/8 | 4.08199.819 | 4.08198.819 |
| 8" | Delrin- PPBB | 1-1/2" | 800 | Polyurethane HI-TECH | 7-1/2 | 5 | 5 | 4.08199.919 | 4.08198.919 |
