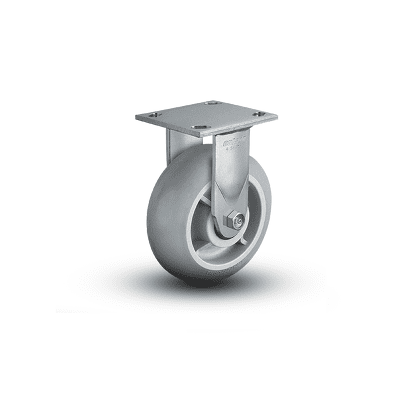

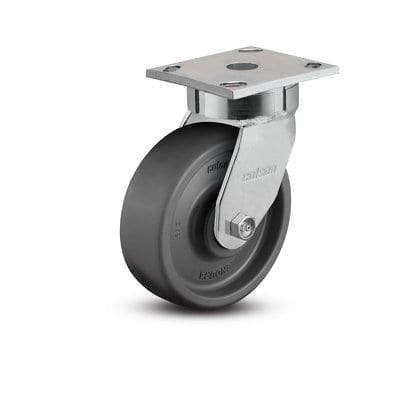

Kingpinless Swivel Casters and Matching Rigid Models
| Wheel Diameter | Optional Bearings | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 4" | PPBB | 2" | 300 | Performa Rubber (Conductive Flat) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.459(COND) | 4.04108.459(COND) |
| 4" | Delrin- PPBB- Prec Ball | 2" | 400 | Performa Rubber (Flat Black) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.459.2 | 4.04108.459.2 |
| 4" | Delrin- PPBB- Prec Ball | 2" | 400 | Performa Rubber (Flat Grey) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.459 | 4.04108.459 |
| 4" | Delrin- PPBB | 2" | 400 | Transforma LT (Flat) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.4B9 | 4.04108.4B9 |
| 4" | Delrin- PPBB | 2" | 400 | Transforma (Flat) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.4E9 | 4.04108.4E9 |
| 4" | Delrin- PPBB | 2" | 400 | Moldon Rubber Ironcore | 5-5/8 | 3-9/16 | 7-1/4 | 4.04189.649.7 | 4.04108.649.7 |
| 4" | Delrin- Plain- PPBB | 2" | 500 | Polyolefin | 5-5/8 | 3-9/16 | 4-1/2 | 4.04189.839 | 4.04108.839 |
| 4" | Delrin- PPBB | 2" | 600 | Transforma HD (Flat) | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.4F9 | 4.04108.4F9 |
| 4" | Delrin- PPBB | 2" | 600 | Polyurethane HI-TECH | 5-5/8 | 3-9/16 | 4-3/4 | 4.04189.929 | 4.04108.929 |
| 4" | Delrin- PPBB | 2" | 700 | Moldon Polyurethane Aluminumcore | 5-5/8 | 3-9/16 | 5-1/4 | 4.04189.939 | 4.04108.939 |
| 4" | Delrin- PPBB | 2" | 700 | Moldon Polyurethane Ironcore | 5-5/8 | 3-9/16 | 5-1/4 | 4.04189.949.7 | 4.04108.949.7 |
| 4" | Delrin- Bronze- PPBB | 2" | 800 | Maxim | 5-5/8 | 3-9/16 | 4-1/8 | 4.04189.539 | 4.04108.539 |
| 4" | Delrin- PPBB | 2" | 800 | Phenolic | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.339 | 4.04108.339 |
| 4" | Plain- Bronze | 2" | 800 | Thermo High Temp | 5-5/8 | 3-9/16 | 6-3/4 | 4.04189.839(HT) | 4.04108.839(HT) |
| 4" | Delrin- PPBB | 2" | 800 | V-Groove | 5-5/8 | 3-9/16 | 8-1/8 | 4.04189.739 | 4.04108.739 |
| 4" | Delrin- Prec Ball- PPBB | 2" | 1000 | Endura Solid Elastomer | 5-5/8 | 3-9/16 | 5-3/4 | 4.04189.839EN | 4.04108.839EN |
| 4" | Delrin- PPBB | 2" | 1000 | Cast Iron | 5-5/8 | 3-9/16 | 7-7/8 | 4.04189.139 | 4.04108.139 |
| 5" | PPBB | 2" | 325 | Performa Rubber (Conductive Flat) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.459(COND) | 4.05108.459(COND) |
| 5" | Delrin- PPBB | 2" | 400 | Moldon Rubber Ironcore | 6-1/2 | 4-1/4 | 8-1/8 | 4.05189.649.7 | 4.05108.649.7 |
| 5" | Delrin- PPBB | 2" | 450 | Transforma LT (Flat) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.4B9 | 4.05108.4B9 |
| 5" | Delrin- PPBB- Prec Ball | 2" | 500 | Performa Rubber (Flat Black) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.459.2 | 4.05108.459.2 |
| 5" | Delrin- PPBB- Prec Ball | 2" | 500 | Performa Rubber (Flat Grey) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.459 | 4.05108.459 |
| 5" | Delrin- PPBB | 2" | 500 | Transforma (Flat) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.4E9 | 4.05108.4E9 |
| 5" | Delrin- Plain- PPBB | 2" | 650 | Polyolefin | 6-1/2 | 4-1/4 | 4-7/8 | 4.05189.839 | 4.05108.839 |
| 5" | Delrin- PPBB | 2" | 750 | Transforma HD (Flat) | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.4F9 | 4.05108.4F9 |
| 5" | Delrin- PPBB | 2" | 750 | Polyurethane HI-TECH | 6-1/2 | 4-1/4 | 4-3/4 | 4.05189.929 | 4.05108.929 |
| 5" | Delrin- Bronze- PPBB | 2" | 1000 | Maxim | 6-1/2 | 4-1/4 | 4-1/2 | 4.05189.539 | 4.05108.539 |
| 5" | Delrin- Prec Ball- PPBB | 2" | 1000 | Endura Solid Elastomer | 6-1/2 | 4-1/4 | 5-3/4 | 4.05189.839EN | 4.05108.839EN |
| 5" | Delrin- PPBB | 2" | 1000 | Moldon Polyurethane Aluminumcore | 6-1/2 | 4-1/4 | 6-1/8 | 4.05189.939 | 4.05108.939 |
| 5" | Delrin- PPBB | 2" | 1000 | Moldon Polyurethane Ironcore | 6-1/2 | 4-1/4 | 8-1/8 | 4.05189.949.7 | 4.05108.949.7 |
| 5" | Delrin- PPBB | 2" | 1000 | Moldon Nylon | 6-1/2 | 4-1/4 | 9-1/4 | 4.05189.939 | 4.05108.939 |
| 5" | Delrin- PPBB | 2" | 1000 | Phenolic | 6-1/2 | 4-1/4 | 5-3/4 | 4.05189.339 | 4.05108.339 |
| 5" | Plain- Bronze | 2" | 1000 | Thermo High Temp | 6-1/2 | 4-1/4 | 6-3/4 | 4.05189.839(HT) | 4.05108.839(HT) |
| 5" | Delrin- PPBB | 2" | 1000 | Cast Iron | 6-1/2 | 4-1/4 | 8-7/8 | 4.05189.139 | 4.05108.139 |
| 5" | Delrin- PPBB | 2" | 1250 | Forged Steel | 6-1/2 | 4-1/4 | 9-1/4 | 4.05189.239 | 4.05108.239 |
| 6" | Delrin- PPBB | 2" | 400 | Transforma LT (Round) | 7-1/2 | 5 | 6-1/8 | 4.06189.-B9 | 4.06108.-B9 |
| 6" | PPBB | 2" | 410 | Performa Rubber (Conductive Flat) | 7-1/2 | 5 | 6-1/8 | 4.06189.459(COND) | 4.06108.459(COND) |
| 6" | PPBB | 2" | 410 | Performa Rubber (Conductive Round) | 7-1/2 | 5 | 6-1/8 | 4.06189.559(COND) | 4.06108.559(COND) |
| 6" | Delrin- PPBB- Prec Ball | 2" | 450 | Performa Rubber (Round) | 7-1/2 | 5 | 6-1/8 | 4.06189.559 | 4.06108.559 |
| 6" | Delrin- PPBB | 2" | 450 | Transforma (Round) | 7-1/2 | 5 | 6-1/8 | 4.06189.-E9 | 4.06108.-E9 |
| 6" | Delrin- PPBB | 2" | 450 | Moldon Rubber Ironcore | 7-1/2 | 5 | 10-1/2 | 4.06189.649.7 | 4.06108.649.7 |
| 6" | Delrin- PPBB | 2" | 500 | Transforma LT (Flat) | 7-1/2 | 5 | 6-1/8 | 4.06189.4B9 | 4.06108.4B9 |
| 6" | Delrin- PPBB- Prec Ball | 2" | 600 | Performa Rubber (Flat Black) | 7-1/2 | 5 | 6-1/8 | 4.06189.459.2 | 4.06108.459.2 |
| 6" | Delrin- PPBB- Prec Ball | 2" | 600 | Performa Rubber (Flat Grey) | 7-1/2 | 5 | 6-1/8 | 4.06189.459 | 4.06108.459 |
| 6" | Delrin- PPBB | 2" | 500 | Transforma HD (Round) | 7-1/2 | 5 | 6-1/8 | 4.06189.5F9 | 4.06108.5F9 |
| 6" | Delrin- Plain- PPBB | 2" | 700 | Polyolefin | 7-1/2 | 5 | 5-1/2 | 4.06189.839 | 4.06108.839 |
| 6" | Delrin- PPBB | 2" | 900 | Polyurethane HI-TECH | 7-1/2 | 5 | 5 | 4.06189.929 | 4.06108.929 |
| 6" | Delrin- PPBB | 2" | 900 | Transforma HD (Flat) | 7-1/2 | 5 | 6-1/8 | 4.06189.4F9 | 4.06108.4F9 |
| 6" | Prec Ball | 2" | 900 | Triumph (Round/Blue) | 7-1/2 | 5 | 7-1/2 | 4.06189.96TF | 4.06108.96TF |
| 6" | Prec Ball | 2" | 900 | Triumph (Round/Red) | 7-1/2 | 5 | 7-1/2 | 4.06189.96TS | 4.06108.96TS |
| 6" | Plain- Bronze | 2" | 1100 | Thermo High Temp | 7-1/2 | 5 | 7-1/2 | 4.06189.839(HT) | 4.06108.839(HT) |
| 6" | Delrin- Prec Ball- PPBB | 2" | 1100 | Endura Solid Elastomer | 7-1/2 | 5 | 7 | 4.06189.839EN | 4.06108.839EN |
| 6" | Delrin- Bronze- PPBB | 2" | 1200 | Maxim | 7-1/2 | 5 | 4-3/4 | 4.06189.539 | 4.06108.539 |
| 6" | Delrin- PPBB | 2" | 1200 | Moldon Polyurethane Aluminumcore | 7-1/2 | 5 | 7-1/2 | 4.06189.939 | 4.06108.939 |
| 6" | Delrin- PPBB | 2" | 1200 | Moldon Polyurethane Ironcore | 7-1/2 | 5 | 10-1/2 | 4.06189.949.7 | 4.06108.949.7 |
| 6" | Delrin- PPBB | 2" | 1200 | Moldon Nylon | 7-1/2 | 5 | 9-1/4 | 4.06189.939 | 4.06108.939 |
| 6" | Delrin- PPBB | 2" | 1200 | Phenolic | 7-1/2 | 5 | 6 | 4.06189.339 | 4.06108.339 |
| 6" | Delrin- PPBB | 2" | 1200 | V-Groove | 7-1/2 | 5 | 10-1/2 | 4.06189.739 | 4.06108.739 |
| 6" | Delrin- PPBB | 2" | 1200 | Cast Iron | 7-1/2 | 5 | 9-3/4 | 4.06189.139 | 4.06108.139 |
| 6" | Delrin- PPBB | 2" | 1250 | Forged Steel | 7-1/2 | 5 | 10-1/4 | 4.06189.239 | 4.06108.239 |
| 8" | PPBB | 2" | 500 | Performa Rubber (Conductive Flat) | 9-1/2 | 6-1/2 | 6-1/4 | 4.08189.459(COND) | 4.08198.459(COND) |
| 8" | PPBB | 2" | 500 | Performa Rubber (Conductive Round) | 9-1/2 | 6-1/2 | 6-1/4 | 4.08189.559(COND) | 4.08198.559(COND) |
| 8" | Delrin- PPBB | 2" | 500 | Moldon Rubber Ironcore | 9-1/2 | 6-1/2 | 13-1/4 | 4.08189.649.7 | 4.08198.649.7 |
| 8" | Delrin- PPBB- Prec Ball | 2" | 600 | Performa Rubber (Round Grey) | 9-1/2 | 6-1/2 | 6-1/4 | 4.08189.559 | 4.08198.559 |
| 8" | Delrin- PPBB- Prec Ball | 2" | 675 | Performa Rubber (Flat Black) | 9-1/2 | 6-1/2 | 6-1/4 | 4.08189.459.2 | 4.08198.459.2 |
| 8" | Delrin- PPBB- Prec Ball | 2" | 675 | Performa Rubber (Flat Grey) | 9-1/2 | 6-1/2 | 6-1/4 | 4.08189.459 | 4.08198.459 |
| 8" | Delrin- Plain- PPBB | 2" | 900 | Polyolefin | 9-1/2 | 6-1/2 | 5-3/4 | 4.08189.839 | 4.08198.839 |
| 8" | Delrin- PPBB | 2" | 1000 | Polyurethane HI-TECH | 9-1/2 | 6-1/2 | 5-3/4 | 4.08189.929 | 4.08198.929 |
| 8" | Delrin- Prec Ball- PPBB | 2" | 1200 | Endura Solid Elastomer | 9-1/2 | 6-1/2 | 5-3/4 | 4.08189.839EN | 4.08198.839EN |
| 8" | Prec Ball | 2" | 1200 | Triumph (Crown/Brown) | 9-1/2 | 6-1/2 | 8-1/4 | 4.08189.93TF | 4.08198.93TF |
| 8" | Prec Ball | 2" | 1200 | Triumph (Crown/Red) | 9-1/2 | 6-1/2 | 8-1/4 | 4.08189.93TS | 4.08198.93TS |
| 8" | Prec Ball | 2" | 1200 | Triumph (Round/Blue) | 9-1/2 | 6-1/2 | 8-1/4 | 4.08189.96TF | 4.08198.96TF |
| 8" | Prec Ball | 2" | 1200 | Triumph (Round/Red) | 9-1/2 | 6-1/2 | 8-1/4 | 4.08189.96TS | 4.08198.96TS |
| 8" | Plain- Bronze | 2" | 1100 | Thermo High Temp | 9-1/2 | 6-1/2 | 5-1/2 | 4.08189.839(HT) | 4.08198.839(HT) |
| 8" | Delrin- Bronze- PPBB | 2" | 1250 | Maxim | 9-1/2 | 6-1/2 | 8-1/4 | 4.08189.539 | 4.08198.539 |
| 8" | Delrin- PPBB | 2" | 1250 | Moldon Polyurethane Aluminumcore | 9-1/2 | 6-1/2 | 13-1/4 | 4.08189.939 | 4.08198.939 |
| 8" | Delrin- PPBB | 2" | 1250 | Moldon Polyurethane Ironcore | 9-1/2 | 6-1/2 | 9-1/4 | 4.08189.949.7 | 4.08198.949.7 |
| 8" | Delrin- PPBB | 2" | 1250 | Moldon Nylon | 9-1/2 | 6-1/2 | 9-1/4 | 4.08189.939 | 4.08198.939 |
| 8" | Delrin- PPBB | 2" | 1250 | Phenolic | 9-1/2 | 6-1/2 | 6 | 4.08189.339 | 4.08198.339 |
| 8" | Delrin- PPBB | 2" | 1200 | Cast Iron | 9-1/2 | 6-1/2 | 12-1/2 | 4.08189.139 | 4.08198.139 |
