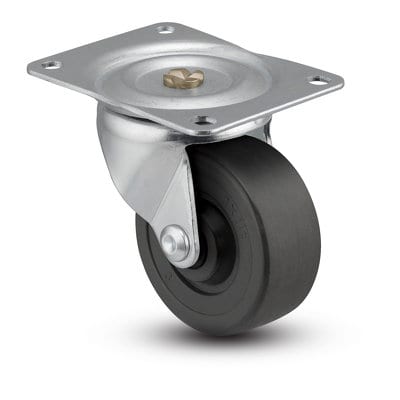

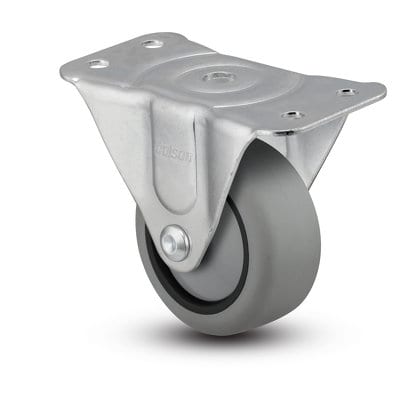

Top Plate Swivel and Rigid
- Zinc plated finish is attractive and durable
- Economical single ball hardened raceway is riveted and coined for for superior durability
- Nickel plated rivet prevents binding
- Standard models feature rivet axle; brake models feature nut and bolt
- Swivel Plates do not match rigid plates.
- All models NSF approved and RoHS compliant
Features
- 2" Swivel: 1-7/8" x 2-9/16 Plate with 15/16" x 2-1/8" bolt holes for 1/4" bolt
- 2" Rigid: 1-1/2" x 2-21/32" Plate with 15/16" x 2-1/8" bolt holes for 1/4" bolt
- 2-1/2" Swivel: 2-3/4" x 3-13/16" Plate with 1-3/4" x 3" bolt holes for 5/16" bolt
- 2-1/2" Rigid: 2-1/4" x 4-7/16" Plate with 1-1/16" x 3-1/2" bolt holes for 5/16" bolt
- 3" Swivel: 3-1/8" x 4-1/8" Plate with 2-3/8 x 3-3/8" bolt holes for 35/16" bolt
- 3" Rigid: 2-1/2" x 4-5/16" Plate with 1-3/16" x 4" bolt holes for 5/16" bolt
- 4" Swivel: 4" x 5-1/8" Plate with 3" x 4" bolt holes for 3/8" bolt
- 4" Rigid: 3-1/8" x 6-1/4" Plate with 1-3/4" x 5" bolt holes for 3/8" bolt
Standard Mounting

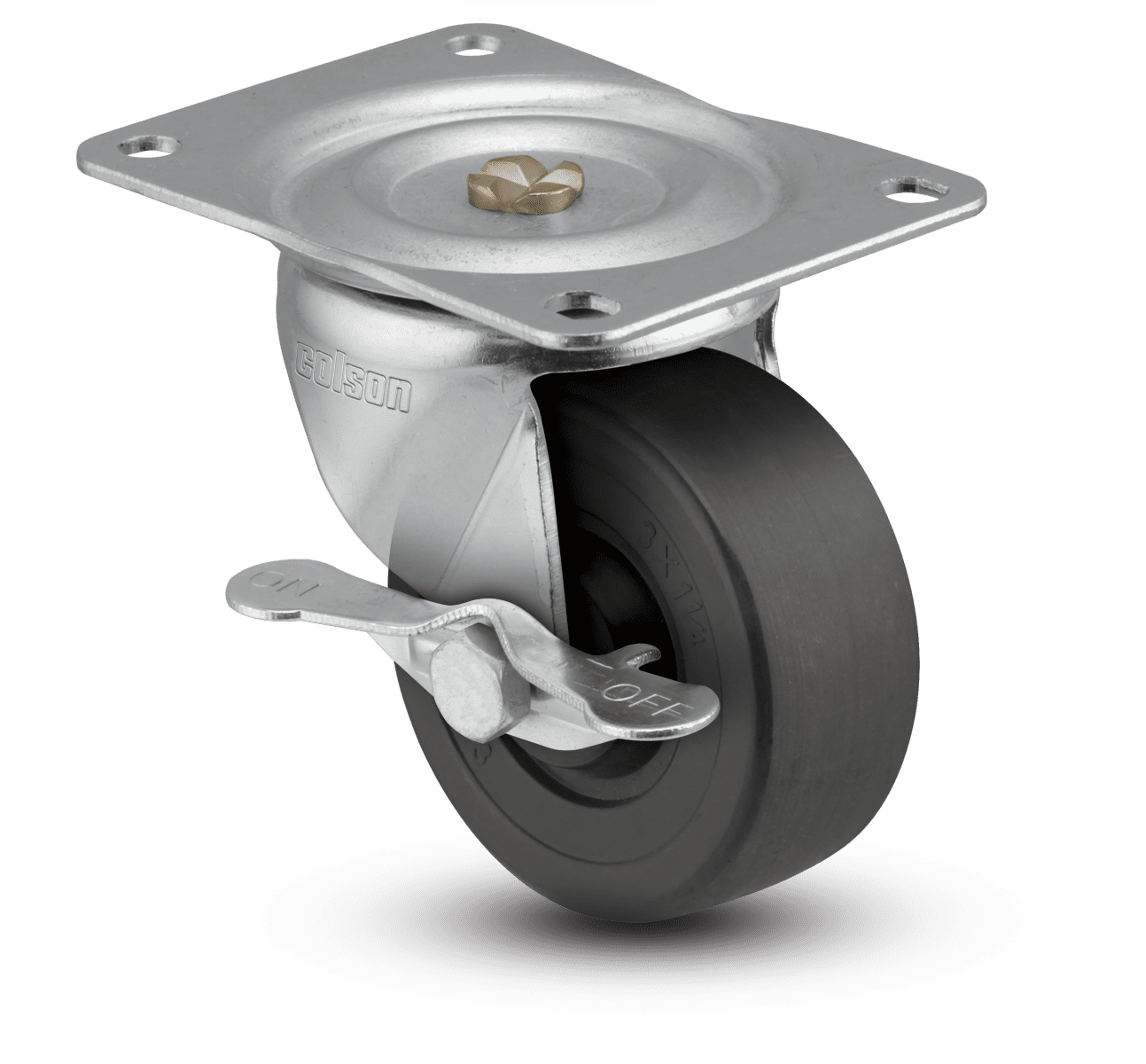

- Brake:Side Lock is easy to engage and disengage with a touch of the pedal (swivel models only)
Options
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2" | 3/4" | 120 | TPR | 2-1/2 | 1-11/16 | 1/2 | Plain | GDP02256142 | GDP0208142 |
| 2" | 1" | 175 | Hard Rubber | 2-1/2 | 1-11/16 | 1/2 | Plain | GDP02561652 | GDP02081652 |
| 2" | 1" | 125 | Polyolefin | 2-1/2 | 1-11/16 | 1/2 | Plain | GDP0256152 | GDP0208152 |
| 2-1/2" | 1-1/8" | 200 | Hard Rubber | 3-3/16 | 2-1/4" | 3/4 | Plain | GDP25561652 | GDP25081652 |
| 2-1/2" | 1-1/8" | 200 | Polyolefin | 3-3/16 | 2-1/4" | 3/4 | Plain | GDP2556152 | GDP2508152 |
| 3" | 1-1/4" | 180 | TPR | 3-13/16 | 2-3/8 | 1-1/4 | Plain | GDP3356142 | GDP3308142 |
| 3" | 1-1/4" | 270 | Hard Rubber | 3-13/16 | 2-3/8 | 1-1/4 | Plain | GDP33561652 | GDP33081652 |
| 3" | 1-1/4" | 270 | Polyolefin | 3-13/16 | 2-3/8 | 1-1/4 | Plain | GDP3356152 | GDP3356152 |
| 4" | 1-5/16" | 350 | Hard Rubber | 5" | 3-3/16 | 3 | Plain | GDP04561652 | GDP04081652 |
| 4" | 1-5/16" | 350 | Polyolefin | 5" | 3-3/16 | 3 | Plain | GDP0456152 | GDP0408152 |
