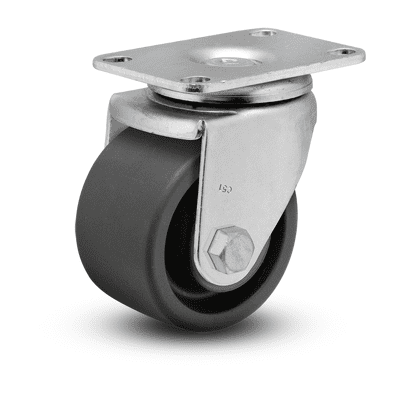

Business Machine Casters
- Corrosion-resistant zinc finish
- Full double ball hardened raceways for better performance and greater durability
- Operating temperature rating -45°F to 180°F
- Ultra-tough, thermoplastic wheel, resists hard imapcts and supports high dynamic load
Features

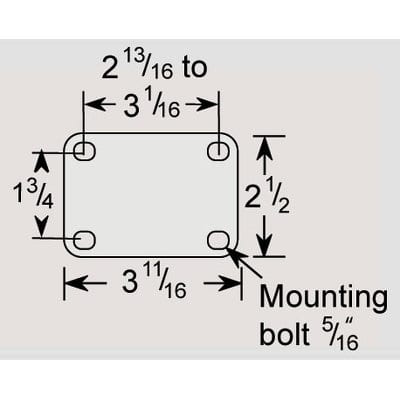

- 2-1/2" x 3-11/16" overall with 1-3/4 x 2-13/16" bolt holes slotted to 1-3/4 x 3-1/16"

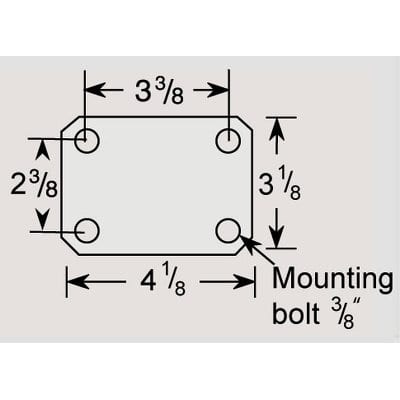

- 3-1/8" x 4-1/8" overall with 2-3/8 x 3-3/8" bolt holes
Standard Mounting
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|
| 3" | 1-13/16" | 500 | Glass-Filled Nylon | 4-1/8 | 2-3/4 | 2-1/4 | Roller | S4.3305.351 |
| 3" | 1-13/16" | 700 | Glass-Filled Nylon | 4-1/8 | 2-3/4 | 2-1/2 | Roller | S4.3307.351 |
| 3" | 1-13/16" | 1200 | Glass-Filled Nylon | 4-1/8 | 2-1/2 | 3 | Roller | S4.3312.351 |
