Optimus
| Wheel Diameter | Stem | Kick Stop Brake | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|---|---|

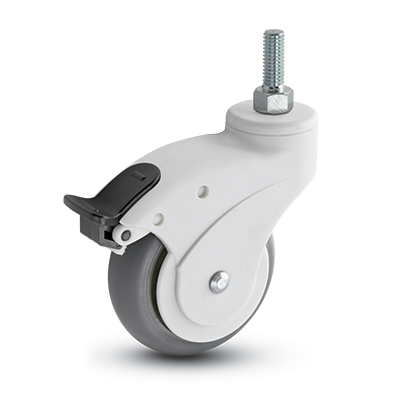

| 3 1/8 | 3/8-16UNC x 1 INCH | No | 1 | Mounting: Threaded Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-SW-TS06 |
| 3 1/8 | 3/8-16UNC x 1 INCH | Face Brake | 1 | Mounting: Threaded Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-FB-TS06 |

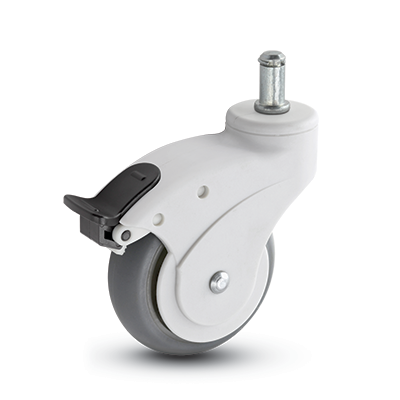

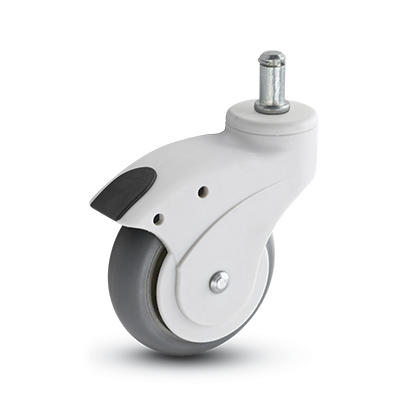

| 3 1/8 | 7/16 x 7/8 INCH | No | 1 | Mounting: Grip Ring Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-SW-GR01 |
| 3 1/8 | 7/16 x 7/8 INCH | Face Brake | 1 | Mounting: Grip Ring Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-FB-GR01 |
| 3 1/8 | 7/16 x 1-7/16 INCH | No | 1 | Mounting: Grip Ring Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-SW-GR02 |
| 3 1/8 | 7/16 x 1-7/16 INCH | No | 1 | Mounting: Grip Ring Stem | 140 Pounds | 4 9/32 INCH | 3 3/4 INCH | OP-03PRN-100-FB-GR02 |
