Bassick Diamond Series Swivel Top Plate Models
- Heat treated raceways
- Legs fully welded to inside and outside of ball cup to ensure a solid connection
- Grease zerks on both wheel bearing and swivel raceway help maintain caster life
- 3/4" nut/bolt kingpin adds additional durability when transporting uneven loads
- All swivel rigs notched for optional swivel lock
- RoHS compliant trivalent zinc plating
Features
- Warehouse Trucks
- Material Handling Equipment
- Floor Trucks
- Shop Carts
Applications
- Bolt on swivel lock available for all swivel models. To order use part number 618787 (Field installable)
- Tread Brake available on all swivel and rigid models (the same brake kit fits both swivel and rigid models!) - add [TB] to end of part number. Swivel radius changes to 3-5/8" on the 4" swivel casters
- 7-1/4" mount height for 6" caster is available, contact factory for details
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|

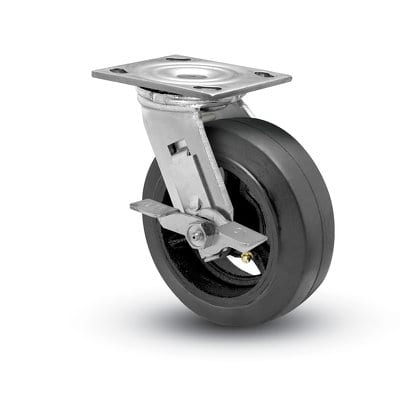

| 4" | 2" | Rubber on Iron | 350 | 5-5/8" | 3" | CDS40156TZ-ROI81(KK) | Sealed Roller |
| 4" | 2" | TPR (Flat) | 350 | 5-5/8" | 3" | CDS40156TZ-TPR81(GG) | Sealed Roller |
| 4" | 2" | TPR (Flat) | 350 | 5-5/8" | 3" | CDS40156TZ-TPR11(GG) | Delrin |

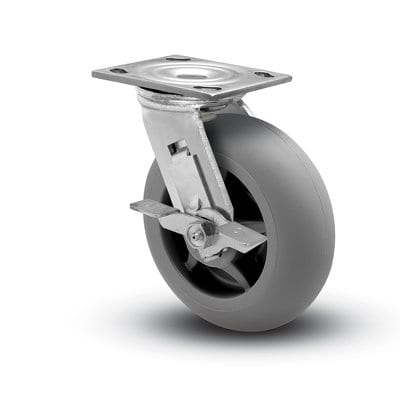

| 4" | 2" | TPR (Donut) | 350 | 5-5/8" | 3" | CDS40156TZ-TPD81(GG) | Sealed Roller |
| TPR (Donut) | 350 | 5-5/8" | 3" | CDS40156TZ-TPD11(GG) | Delrin | ||

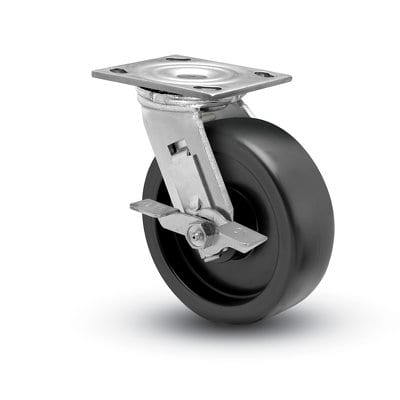

| 4" | 2" | Polyolefin | 450 | 5-5/8" | 3" | CDS40156TZ-POD81(KK) | Sealed Roller |

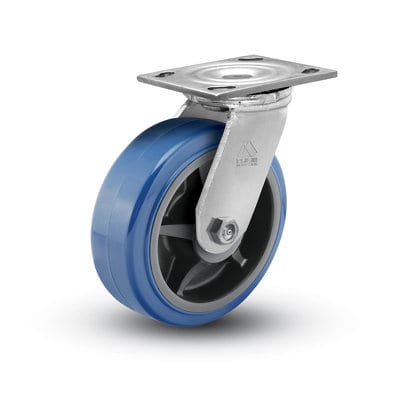

| 4" | 2" | Urethane on Polypropylene | 70 | 5-5/8" | 3" | CDS40156TZ-TPU81(BK) | Sealed Roller |

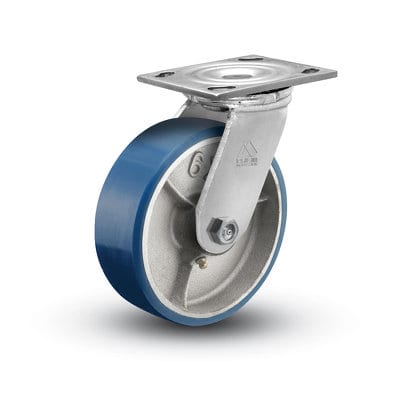

| 4" | 2" | Urethane on Iron | 700 | 5-5/8" | 3" | CDS40156TZ-UOI81(BG) | Sealed Roller |

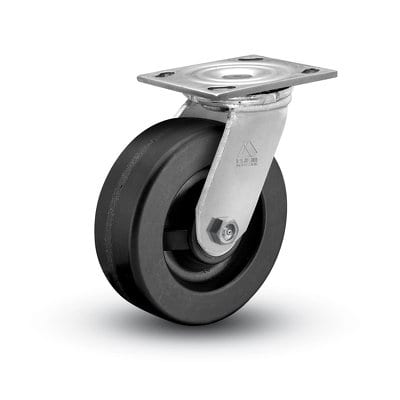

| 4" | 2" | Phenolic | 800 | 5-5/8" | 3" | CDS40156TZ-PHN81(KK) | Sealed Roller |

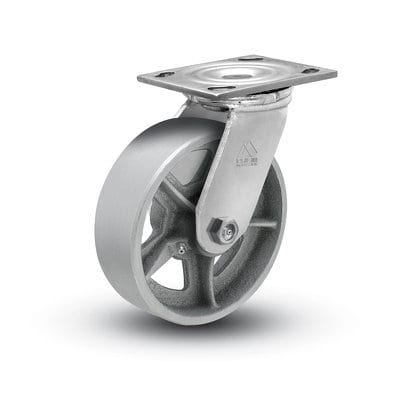

| 4" | 2" | Cast Iron | 800 | 5-5/8" | 3" | CDS40156TZ-IRN51(GG) | Roller |

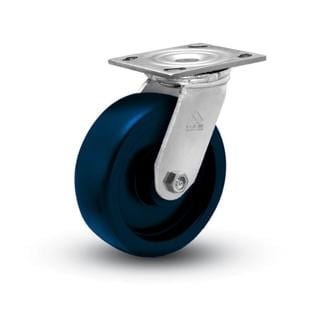

| 4" | 2" | K Solid Urethane | 700 | 5-5/8" | 3" | CDS40156TZ-KPU51(KK) | Roller |
| 4" | 2" | K Solid Urethane | 700 | 5-5/8" | 3" | CDS40156TZ-KPU11(KK) | Delrin |
| 5" | 2" | Rubber on Iron | 400 | 6-1/2" | 3-3/4" | CDS50156TZ-ROI81(KK) | Sealed Roller |

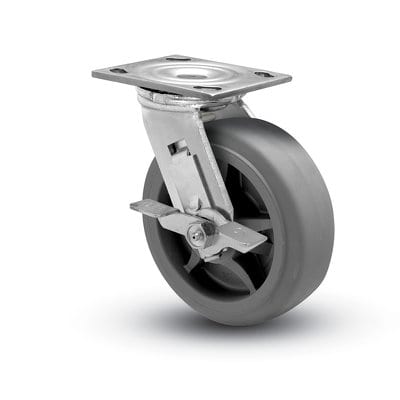

| 5" | 2" | TPR (Flat) | 375 | 6-1/2" | 3-3/4" | CDS50156TZ-TPR81(GG) | Sealed Roller |
| 5" | 2" | TPR (Flat) | 375 | 6-1/2" | 3-3/4" | CDS50156TZ-TPR11(GG) | Delrin |
| 5" | 2" | TPR (Donut) | 375 | 6-1/2" | 3-3/4" | CDS50156TZ-TPD81(GG) | Sealed Roller |
| 5" | 2" | TPR (Donut) | 375 | 6-1/2" | 3-3/4" | CDS50156TZ-TPD11(GG) | Delrin |
| 5" | 2" | Polyolefin | 550 | 6-1/2" | 3-3/4" | CDS50156TZ-POD81(KK) | Sealed Roller |

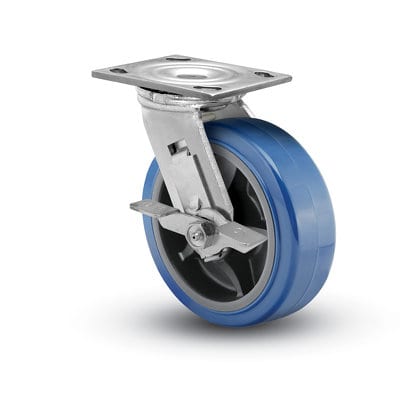

| 5" | 2" | Urethane on Polypropylene | 750 | 6-1/2" | 3-3/4" | CDS50156TZ-TPU81(BK) | Sealed Roller |

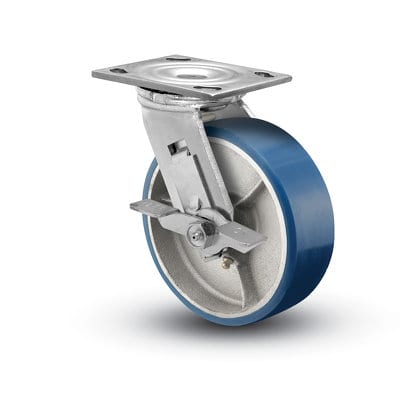

| 5" | 2" | Urethane on Iron | 1000 | 6-1/2" | 3-3/4" | CDS50156TZ-UOI81(BG) | Sealed Roller |
| 5" | 2" | Phenolic | 1000 | 6-1/2" | 3-3/4" | CDS50156TZ-PHN81(KK) | Sealed Roller |
| 5" | 2" | Cast Iron | 1000 | 6-1/2" | 3-3/4" | CDS50156TZ-IRN51(GG) | Roller |
| 5" | 2" | K Solid Urethane | 1000 | 6-1/2" | 3-3/4" | CDS50156TZ-KPU51(KK) | Roller |
| 5" | 2" | K Solid Urethane | 1000 | 6-1/2" | 3-3/4" | CDS50156TZ-KPU11(KK) | Delrin |

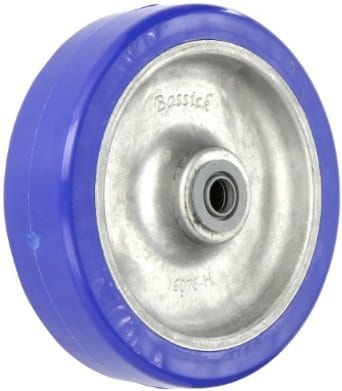

| 5" | 2" | Honcho Urethane | 1250 | 6-1/2" | 3-3/4" | CDS50155YZ-UOA81(BG) | Sealed Roller |
| 6" | 2" | Rubber on Iron | 410 | 7-1/2" | 4-1/2" | CDS60156TZ-ROI81(KK) | Sealed Roller |
| 6" | 2" | TPR (Flat) | 600 | 7-1/2" | 4-1/2" | CDS60156TZ-TPR81(GG) | Sealed Roller |
| 6" | 2" | TPR (Flat) | 600 | 7-1/2" | 4-1/2" | CDS60156TZ-TPR11(GG) | Delrin |
| 6" | 2" | TPR (Donut) | 600 | 7-1/2" | 4-1/2" | CDS60156TZ-TPD81(GG) | Sealed Roller |
| 6" | 2" | TPR (Donut) | 600 | 7-1/2" | 4-1/2" | CDS60156TZ-TPD11(GG) | Delrin |
| 6" | 2" | Polyolefin | 650 | 7-1/2" | 4-1/2" | CDS60156TZ-POD81(KK) | Sealed Roller |
| 6" | 2" | Urethane on Polypropylene | 900 | 7-1/2" | 4-1/2" | CDS60156TZ-TPU81(BK) | Sealed Roller |
| 6" | 2" | Urethane on Iron | 1200 | 7-1/2" | 4-1/2" | CDS60156TZ-UOI81(BG) | Sealed Roller |
| 6" | 2" | Phenolic | 1200 | 7-1/2" | 4-1/2" | CDS60156TZ-PHN81(KK) | Sealed Roller |
| 6" | 2" | Cast Iron | 1200 | 7-1/2" | 4-1/2" | CDS60156TZ-IRN51(GG) | Roller |
| 6" | 2" | K Solid Urethane | 1200 | 7-1/2" | 4-1/2" | CDS60156TZ-KPU51(KK) | Roller |
| 6" | 2" | K Solid Urethane | 1200 | 7-1/2" | 4-1/2" | CDS60156TZ-KPU11(KK) | Delrin |
| 6" | 2" | Honcho Urethane | 1250 | 7-1/2" | 4-1/2" | CDS50155YZ-UOA81(BG) | Sealed Roller |
| 8" | 2" | Rubber on Iron | 500 | 9-1/2" | 6-1/8" | CDS60156TZ-ROI81(KK) | Sealed Roller |
| 8" | 2" | TPR (Flat) | 675 | 9-1/2" | 6-1/8" | CDS60156TZ-TPR81(GG) | Sealed Roller |
| 8" | 2" | TPR (Flat) | 675 | 9-1/2" | 6-1/8" | CDS60156TZ-TPR11(GG) | Delrin |
| 8" | 2" | TPR (Donut) | 675 | 9-1/2" | 6-1/8" | CDS60156TZ-TPD81(GG) | Sealed Roller |
| 8" | 2" | TPR (Donut) | 675 | 9-1/2" | 6-1/8" | CDS60156TZ-TPD11(GG) | Delrin |
| 8" | 2" | Polyolefin | 850 | 9-1/2" | 6-1/8" | CDS60156TZ-POD81(KK) | Sealed Roller |
| 8" | 2" | Urethane on Polypropylene | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-TPU81(BK) | Sealed Roller |
| 8" | 2" | Urethane on Iron | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-UOI81(BG) | Sealed Roller |
| 8" | 2" | Phenolic | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-PHN81(KK) | Sealed Roller |
| 8" | 2" | Cast Iron | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-IRN51(GG) | Roller |
| 8" | 2" | K Solid Urethane | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-KPU51(KK) | Roller |
| 8" | 2" | K Solid Urethane | 1200 | 9-1/2" | 6-1/8" | CDS60156TZ-KPU11(KK) | Delrin |
| 8" | 2" | Honcho Urethane | 1250 | 9-1/2" | 6-1/8" | CDS50155YZ-UOA81(BG) | Sealed Roller |
