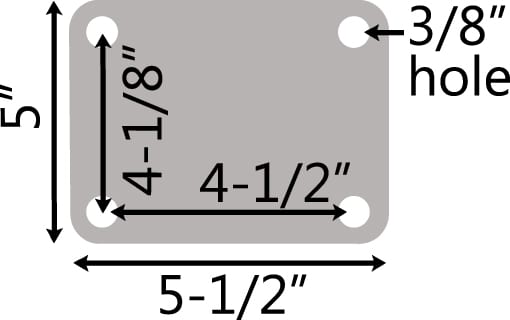

Swivel Top Plate Models

    Features

  • Drawn, single piece leg construction
  • Heat treated, dual ball bearing raceways
  • Yellow dichromate finish for added corrosion resistance

    Applications

  • Towline
  • Fixture Dollies
  • Freight Terminal Trucks
  • Warehouse Trucks

    Options

  • Brake Total Lock.
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number Bearing Type

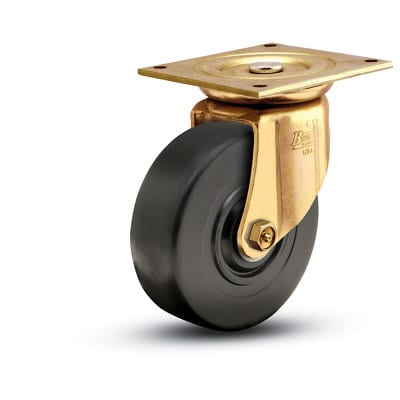

5" 2" Harad Rubber 600 6-1/2" 4-5/16" CES50157YZ-HDR51(KK) Roller
5" 2" Phenolic 1250 6-1/2" 4-5/16" CES50157YZ-PHN81(KK) Sealed Roller
5" 2" Urethane on Aluminum 1500 6-1/2" 4-5/16" CES50157YZ-UOA81(BG) Sealed Roller

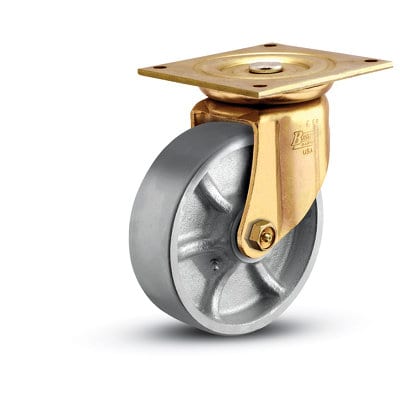

5" 2" Steel 1500 6-1/2" 4-5/16" CES50157YZ-STL51(GG) Roller
6" 2" Hard Rubber 650 7-1/2" 4-13/16" CES60157YZ-HDR51(KK) Roller
6" 2" Phenolic 1500 7-1/2" 4-13/16" CES60157YZ-PHN81(KK) Sealed Roller

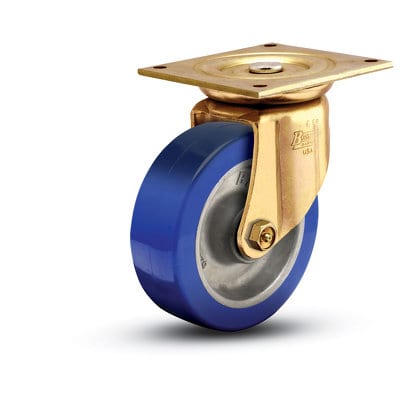

6" 2" Urethane on Aluminum 1500 7-1/2" 4-13/16" CES60157YZ-UOA81(BG) Sealed Roller
6" 2" Steel 1500 7-1/2" 4-13/16" CES60157YZ-STL51(GG) Roller
8" 2" Hard Rubber 750 9-1/2" 5-7/8" CES80157YZ-HDR51(KK) Roller
8" 2" Phenolic 1500 9-1/2" 5-7/8" CES80157YZ-PHN81(KK) Sealed Roller
8" 2" Urethane on Aluminum 1500 9-1/2" 5-7/8" CES80157YZ-UOA81(BG) Sealed Roller
8" 2" Steel 1500 9-1/2" 5-7/8" CES80157YZ-STL51(GG) Roller

Brake Options

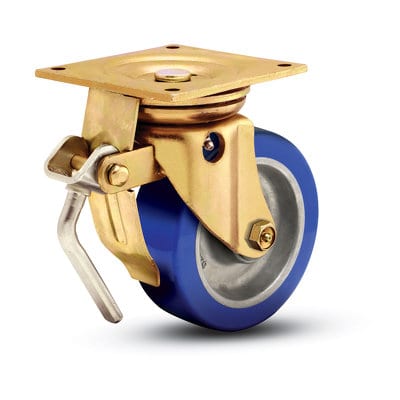

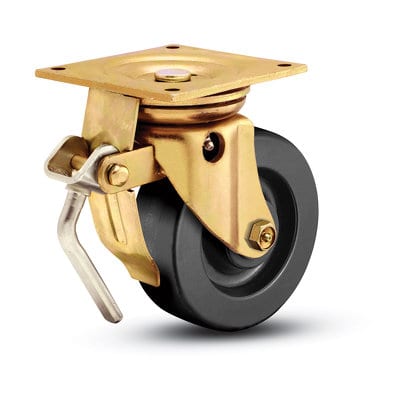

Total Lock Brake

Wheel Selection

Hard Rubber
Phenolic
Urethane on Aluminum
Steel

Finishes

Yellow dichromate Finish
