Request a Quote It's Fast. It's Friendly. It's Free.

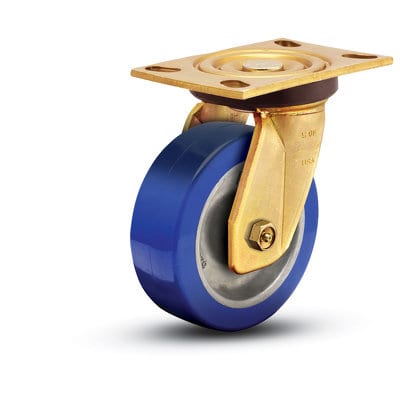

Swivel Top Plate Models
- Heavy steel, dual ball raceway
- Durable stamped- welded construction
- 2-1/2" wide wheels for increased load handling
- Heavy, staked kingpin
- Sealed upper and lower ball races
- Yellow dichromate finish for added corrosion resistance
Features
- Power Towed Application
- High Abuse Applications
- Rough floors
Applications

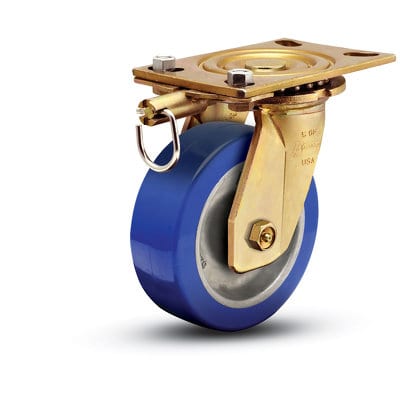

- Swivel Lock 4 position swivel lock.
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|
| 6" | 2-1/2" | Urethane on Aluminum | 1750 | 7-1/2" | 4-3/4" | CHS50158YZ-UOA81(BG) | Sealed Roller |
| 8" | 2-1/2" | Urethane on Aluminum | 1750 | 9-1/2" | 6" | CHS60158YZ-UOA81(BG) | Sealed Roller |
| 10" | 2-1/2" | Urethane on Aluminum | 1750 | 11-1/2" | 7-1/4" | CHS80158YZ-UOA81(BG) | Sealed Roller |
