Request a Quote It's Fast. It's Friendly. It's Free.

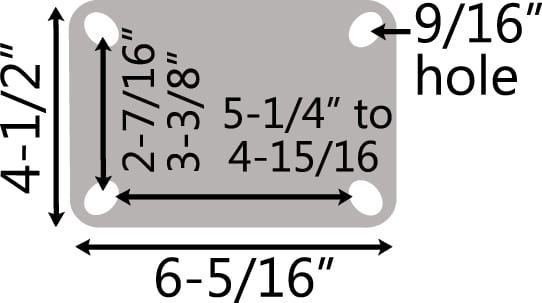

Rigid Top Plate Models
- Heavy, stamped leg construction
- Heat treated, dual ball bearing raceways
- Wraparound welded legs are located directly under the main support swivel bearings for added strength
- Sealed upper and lower ball races
- Yellow dichromate finish for added corrosion resistance
Features
- Power Towed Application
- Terminal Trucks
- High Abuse Applications
Applications
- Swivel Lock 4 position swivel lock.
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|
| 5" | 2" | Urethane on Aluminum | 1500 | 6-1/2" | N/A | COR50158YZ-UOA81(BG) | Sealed Roller |

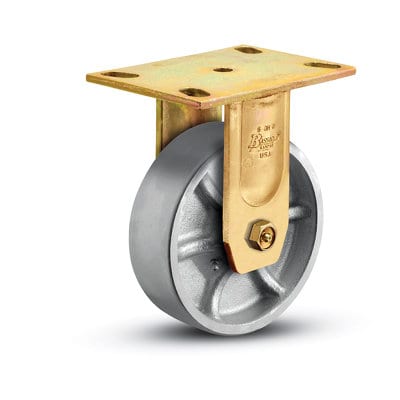

| 5" | 2" | Steel | 1750 | 6-1/2" | N/A | COR50158YZ-STL51(GG) | Roller |

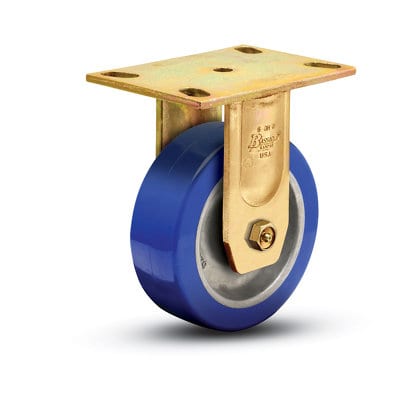

| 6" | 2" | Urethane on Aluminum | 1500 | 7-1/2" | N/A | COR60158YZ-UOA81(BG) | Sealed Roller |
| 6" | 2" | Steel | 1750 | 7-1/2" | N/A | COR60158YZ-STL51(GG) | Roller |
| 8" | 2" | Urethane on Aluminum | 1500 | 9-1/2" | N/A | COR80158YZ-UOA81(BG) | Sealed Roller |
| 8" | 2" | Steel | 1750 | 9-1/2" | N/A | COR80158YZ-STL51(GG) | Roller |
