Request a Quote It's Fast. It's Friendly. It's Free.

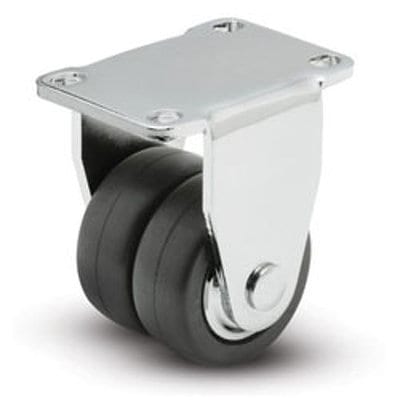

Rigid Top Plate Models
- Sleek, low profile design
- Easy pivoting action
- Dual ball raceways protected by dust cap
- Heat-treated
- High luster chrome finish
- Precision bearing wheels for ultimate mobility
- Full thread guards on all 2-1/2_ neoprene models
Features
- Theatrical Equipment
- Computer Frames
- Electronic Enclosures
- Copy Machines
- Business Machines
- Medical Equipment
- Fixtures and Displays
Applications

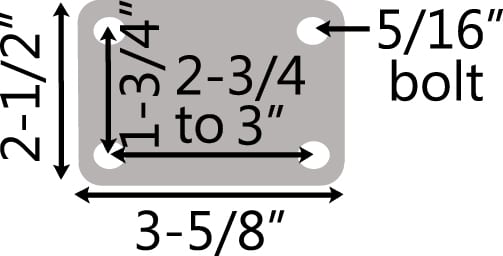

- Fastenings: Threaded Stems, Hollow Kingpin, and Top Plates
Options
| Wheel Diameter | Thread With | Thread Guard | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|---|
| 2" | 1 X 2 " | None | Neoprene (Donut) | 300 | 3-13/16" | 2-1/4" | BDR20142BC-NPR31(KK) | Precision |
| 2" | 1 X 2 " | None | Glass Filled Nylon | 400 | 3-13/16" | 2-1/4" | BDR20142BC-GFN31(KK) | Precision |
| 2-1/2" | 1 X 2 " | Full | Neoprene (Flat) | 300 | 3-3/4" | 2-1/2" | BDR20142BC-NPR31(KK) | Precision |
| 2-1/2" | 1 X 2 " | Full | Glass Filled Nylon | 400 | 3-3/4" | 2-1/2" | BDR20142BC-GFN31(KK) | Precision |
