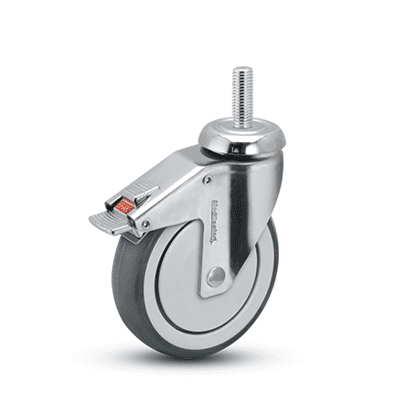

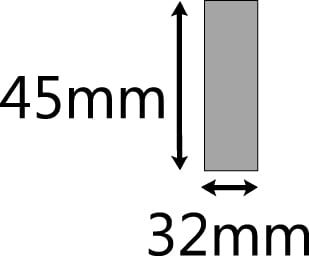

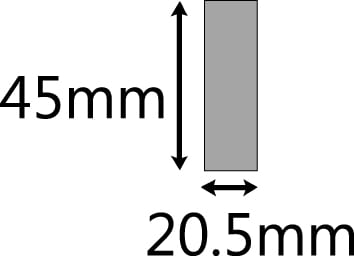

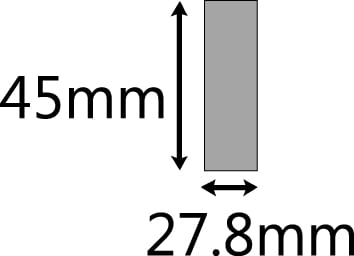

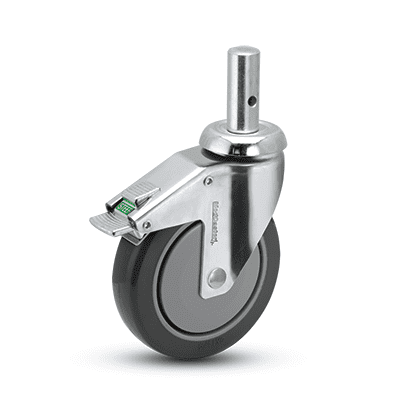

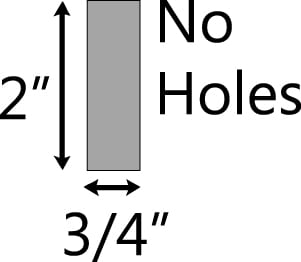

Round or Square Stem Models
- Chrome Plated Finish
- Dual Ball Swivel Raceways for added strength
- Total Lock Brake models lock both swivel and wheel
- Directional lock models lock swivel only (helps with steering)
- Precision ball bearings in wheels for easier rollability
- Wheels have full plastic thread guards for added protection
Features
- Food Service
- Case Carts
- Hospital Carts
- Institutional Equipment
- Medical Equipment
Applications
- Brakes: Total lock, Direction Lock
- Fastenings: Hollow Kingpin, Threaded Stem, Grip Ring, Round or Square Stem, Expeending Adapter Stem, Swivel Top Plate, Rigid Top Plate
- Finishes: Chrome Plate Finish
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|
| 3" | 1-1/4" | Thermoplastic Rubber | 190 | 4-5/16" | 2-29/32" | CH-03TPP-125-SW-RS01_ CH-03TPP-125-SW-RS02_ CH-03TPP-125-SW-RS03_ CH-03TPP-125-SW-RS04_ CH-03TPP-125-SW-RS05_ CH-03TPP-125-SW-SQ01_ CH-03TPP-125-SW-SQ02_ | Precision Ball |
| 3 | 1-1/4 | Polyurethane TPU | 190 | 4-5/16 | 2-29/32 | CH-03PYP-125-SW-RS01_ CH-03PYP-125-SW-RS02_ CH-03PYP-125-SW-RS03_ CH-03PYP-125-SW-RS04_ CH-03PYP-125-SW-RS05_ CH-03PYP-125-SW-SQ01_ CH-03PYP-125-SW-SQ02_ | Precision Ball |
| 4" | 1-1/4" | Thermoplastic Rubber | 240 | 5-5/16" | 3-37/64" | CH-04TPP-125-SW-RS01_ CH-04TPP-125-SW-RS02_ CH-04TPP-125-SW-RS03_ CH-04TPP-125-SW-RS04_ CH-04TPP-125-SW-RS05_ CH-04TPP-125-SW-SQ01_ CH-04TPP-125-SW-SQ02_ | Precision Ball |
| 4" | 1-1/4" | Polyurethane TPU | 240 | 5-5/16" | 3-37/64" | CH-04PYP-125-SW-RS01_ CH-04PYP-125-SW-RS02_ CH-04PYP-125-SW-RS03_ CH-04PYP-125-SW-RS04_ CH-04PYP-125-SW-RS05_ CH-04PYP-125-SW-SQ01_ CH-04PYP-125-SW-SQ02_ | Precision Ball |
| 5" | 1-1/4" | Thermoplastic Rubber | 260 | 6-5/16" | 4-7/32" | CH-05TPP-125-SW-RS01_ CH-05TPP-125-SW-RS02_ CH-05TPP-125-SW-RS03_ CH-05TPP-125-SW-RS04_ CH-05TPP-125-SW-RS05_ CH-05TPP-125-SW-SQ01_ CH-05TPP-125-SW-SQ02_ | Precision Ball |
| 5" | 1-1/4" | Polyurethane TPU | 260 | 6-5/16" | 4-7/32" | CH-05PYP-125-SW-RS01_ CH-05PYP-125-SW-RS02_ CH-05PYP-125-SW-RS03_ CH-05PYP-125-SW-RS04_ CH-05PYP-125-SW-RS05_ CH-05PYP-125-SW-SQ01_ CH-05PYP-125-SW-SQ02_ | Precision Ball |
| 6" | 1-1/4" | Thermoplastic Rubber | 260 | 7-9/32" | 4-39/64" | CH-06TPP-125-SW-RS01_ CH-06TPP-125-SW-RS02_ CH-06TPP-125-SW-RS03_ CH-06TPP-125-SW-RS04_ CH-06TPP-125-SW-RS05_ CH-06TPP-125-SW-SQ01_ CH-06TPP-125-SW-SQ02_ | Precision Ball |
| 6" | 1-1/4" | Polyurethane TPU | 260 | 7-9/32" | 4-39/64" | CH-06PYP-125-SW-RS01_ CH-06PYP-125-SW-RS02_ CH-06PYP-125-SW-RS03_ CH-06PYP-125-SW-RS04_ CH-06PYP-125-SW-RS05_ CH-06PYP-125-SW-SQ01_ CH-06PYP-125-SW-SQ02_ | Precision Ball |
