Eclipse Grip Ring Stem Models

    Features

  • Strong glass-filled nylon body, black or grey
  • Sleek stylish design
  • Full thread guards
  • Nut and bolt axle

    Applications

  • Medical Equipment
  • Utility Carts
  • Store Fixtures
  • Food Service Equipment
  • Seating

    Options

  • BrakeTread brake uniformly integrated into body design for smooth lock and ease of activation. Add -B at end of model
  • RoHS compliant:Available upon request
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number Bearing Type
3" 15/16 Polyurethane 120 4-5/16" 2-1/2" PEC30211GR-TPU03(GG) PEC30223GR-TPU03(GG) Delrin
3" 15/16 Clear Urethane 120 4-5/16" 2-1/2" PEC30211GR-SKW31(CG) PEC30223GR-SKW31(CG) Precision Ball
4" 15/16 Polyurethane 125 5-3/8" 3-1/4" PEC40211GR-TPU03(GG) PEC40223GR-TPU03(GG) Delrin
3" 15/16 Polyurethane 120 4-5/16" 2-1/2" PEC30211BK-TPU03(GG) PEC30223BK-TPU03(GG) Delrin
3" 15/16 Clear Urethane 120 4-5/16" 2-1/2" PEC30211BK-TPU03(GG) PEC30223BK-TPU03(GG) Precision Ball
4" 15/16 Polyurethane 125 5-3/8" 3-1/4" PEC30211BK-TPU03(GG) PEC30223BK-TPU03(GG) Delrin

Brake Options

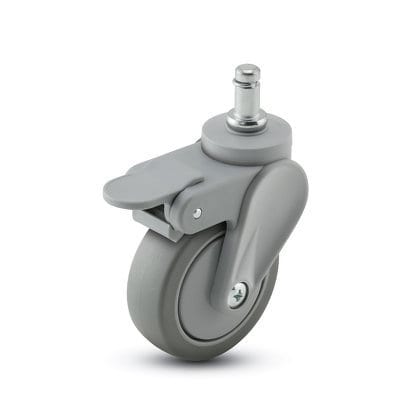

Integral Tread Brake

Swivel radius for 3" changes to 3-1/8", for 4" is 3-13/16. Add - B to end of part number

Wheel Selection

Grey Polyurethane

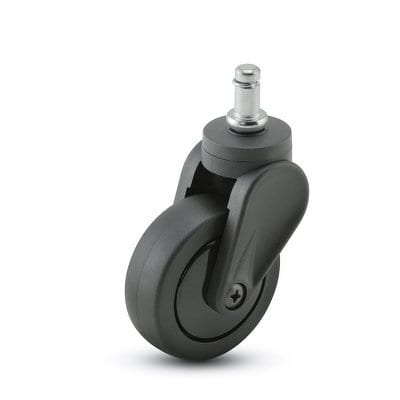

Black Polyurethane

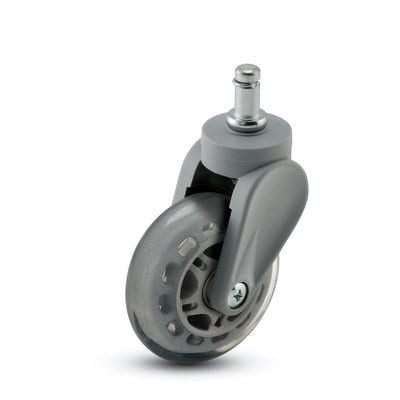

Grey Urethane Clear Tread

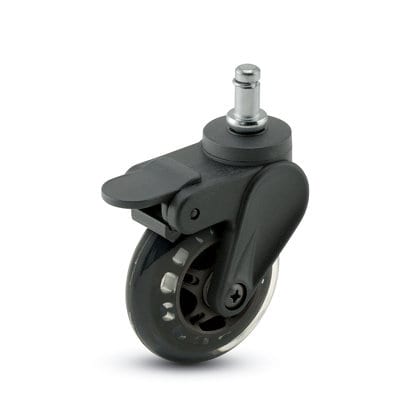

Black Urethane Clear Tread
