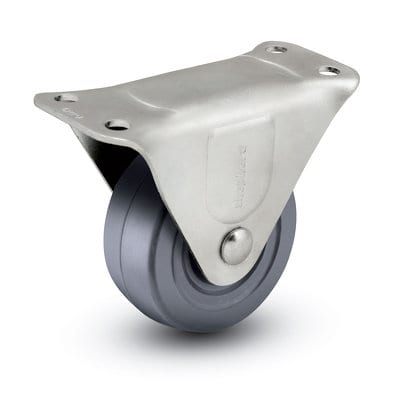

Shepherd Rigid Top Plate Models
- Zinc Finish
- RoHS compliant
- Single Race
- Nut and bolt axle
- Nickel plated kingpin for smooth swivel
- Economical
Features
- Material Handling
- Institutional Equipment
- Industrial Equipment
- Furniture
Applications
- Brake: Available on all except steel wheel models
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 2" | 13/16" | Soft Rubber | 80 | 2-5/8" | 1-15/16" | PRQ20122TZ-3R |
| 2" | 13/16" | Polyolefin | 80 | 2-5/8" | 1-15/16" | PRQ20122TZ-3E |
| 2" | 13/16" | Hard Rubber | 90 | 2-5/8" | 1-15/16" | PRQ20122TZ-3H |
| 2" | 13/16" | Steel | 90 | 2-5/8" | 1-15/16" | PRQ20122TZ-STL01(GG) |
| 2-1/2" | 13/16" | Soft Rubber | 80 | 3-1/8" | 2-1/8" | PRQ25123TZ-3R |
| 2-1/2" | 13/16" | Polyolefin | 80 | 3-1/8" | 2-1/8" | PRQ25123TZ-3E |
| 2-1/2" | 13/16" | Hard Rubber | 95 | 3-1/8" | 2-1/8" | PRQ25123TZ-3H |
| 2-1/2" | 13/16" | Steel | 95 | 3-1/8" | 2-1/8" | PRQ25123TZ-STL01(GG) |
| 3" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PRQ30123TZ-3R |
| 3" | 13/16" | Polyolefin | 110 | 3-1/2" | 2-1/2" | PRQ30124TZ-3E |
| 3" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PRQ30124TZ-3H |
| 3" | 13/16" | Steel | 120 | 3-1/2" | 2-1/2" | PRQ30124TZ-STL01(GG) |
| 4" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PRQ40125TZ-3R |
| 4" | 13/16" | Polyolefin | 110 | 3-1/2" | 2-1/2" | PRQ40125TZ-3E |
| 4" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PRQ40125TZ-3H |
| 4" | 13/16" | Steel | 120 | 3-1/2" | 2-1/2" | PRQ40125TZ-STL01(GG) |
