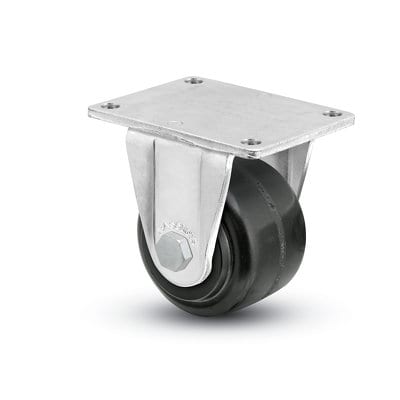

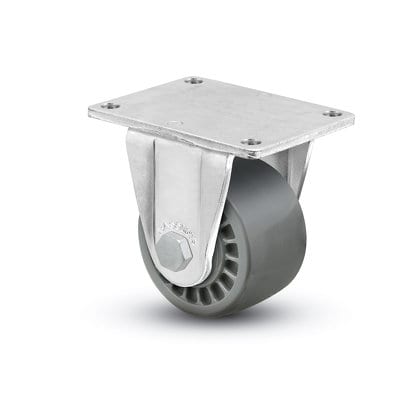

Rigid Top Plate Models
- High load capacity
- Low profile design
- Precision bearing wheels standard in glass-filled nylon models
- Urethane wheel for quieter mobility; 55-65 shore D durometer (3” models)
- Nut and bolt axle
- RoHS compliant trivalent zinc plating
Features
- Copiers
- Business Machines
- Vending Machines
- Computer Storage Devices
- Refrigerated Displays
- Electronics Cabinets
Applications
- Sure-Lok Brakeavailable on 3” swivel & rigid glass filled nylon and urethane
- Thumb Screw Brake available on 3" swivel models (swivel radius 2-7/16"). Add [B] to end of part number
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|
| 2-3/8" | 1-5/8" | Phenolic | 600 | 3-7/32" | 2-3/32" | BLR23138TZ-PHN51(KK) | Roller |
| 2-1/2" | 1-3/4" | Polyolefin | 400 | 3-9/32" | 2-1/4" | BLR25138TZ-POL51(KK) | Roller |
| 3" | 1-13/16" | Phenolic | 700 | 3-31/32" | 2-5/16" | BLR30152TZ-PHN51(KK) BLR30153TZ-PHN51(KK) | Roller |
| 3" | 1-13/16" | Glass Filled Nylon | 700 | 3-31/32" | 2-5/16" | BLR30152TZ-GFN61(KK) BLR30153TZ-GFN61(KK) | Precision |
| 3" | 1-13/16" | Urethane | 700 | 3-31/32" | 2-5/16" | BLR30152TZ-UAS51(GG) BLR30153TZ-UAS51(GG) | Roller |
| 3" | 1-13/16" | Phenolic | 900 | 4-1/32" | 2-5/16" | BLR30152TZ-PHN51(KK) | Roller |
| 3" | 1-13/16" | Glass Filled Nylon | 1000 | 4-1/32" | 2-5/16" | BLR30152TZ-GFN611(KK) | Precision |
| 3" | 1-13/16" | Urethane | 1000 | 4-1/32" | 2-5/16" | BLR30152TZ-UAS51(GG) | Roller |
