Swivel Top Plate Models

    Features

  • High load capacity
  • Low profile design
  • Precision bearing wheels standard in glass-filled nylon models
  • Urethane wheel for quieter mobility; 55-65 shore D durometer (3” models)
  • Nut and bolt axle
  • RoHS compliant trivalent zinc plating

    Applications

  • Copiers
  • Business Machines
  • Vending Machines
  • Computer Storage Devices
  • Refrigerated Displays
  • Electronics Cabinets

    Options

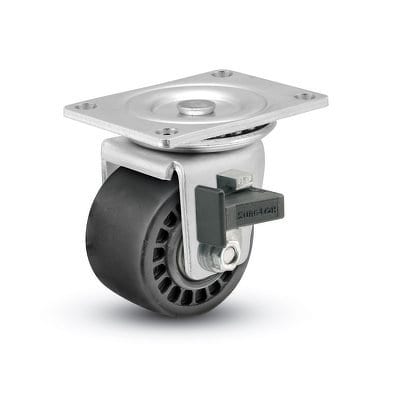

  • Sure-Lok Brakeavailable on 3” swivel & rigid glass filled nylon and urethane models (swivel radius is 2-5/8"). Add [SL] to end of part number
  • Thumb Screw Brake available on 3" swivel models (swivel radius 2-7/16"). Add [B] to end of part number
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number Bearing Type

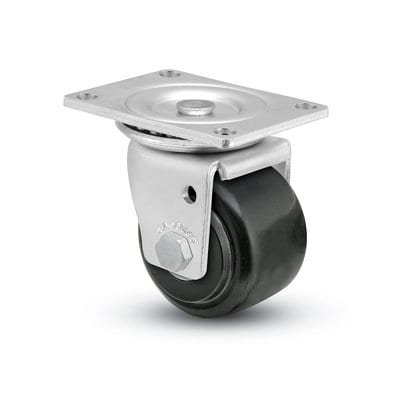

2-3/8" 1-5/8" Phenolic 600 3-7/32" 2-3/32" BLS23138TZ-PHN51(KK) Roller
2-1/2" 1-3/4" Polyolefin 400 3-9/32" 2-1/4" BLS25138TZ-POL51(KK) Roller
3" 1-13/16" Phenolic 700 3-31/32" 2-5/16" BMS30152TZ-PHN51(KK) Roller

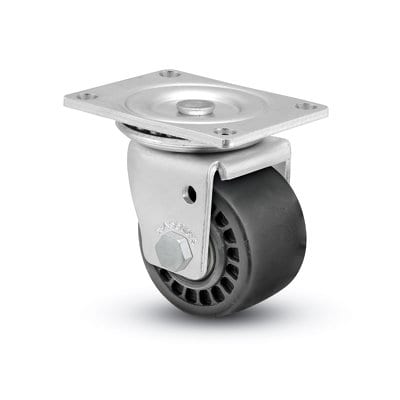

3" 1-13/16" Glass Filled Nylon 700 3-31/32" 2-5/16" BLS30152TZ-GFN61(KK) Precision
3" 1-13/16" Solid Urethane 700 3-31/32" 2-5/16" BLS30152TZ-SPU51(GG) Roller
3" 1-13/16" Phenolic 900 4-1/32" 2-5/16" BMS30152TZ-PHN51(KK) Roller
3" 1-13/16" Glass Filled Nylon 1000 4-1/32" 2-5/16" BMS30152TZ-GFN61(KK) Precision

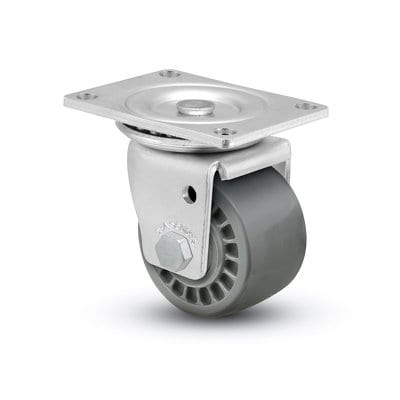

3" 1-13/16" Urethane 1000 4-1/32" 2-5/16" BMS30152TZ-SPU51(GG) Roller

Brake Options

Wheel Selection

Polyolefin
Phenolic
Glass Filled Nylon
Urethane

Finishes

Zinc Plated
