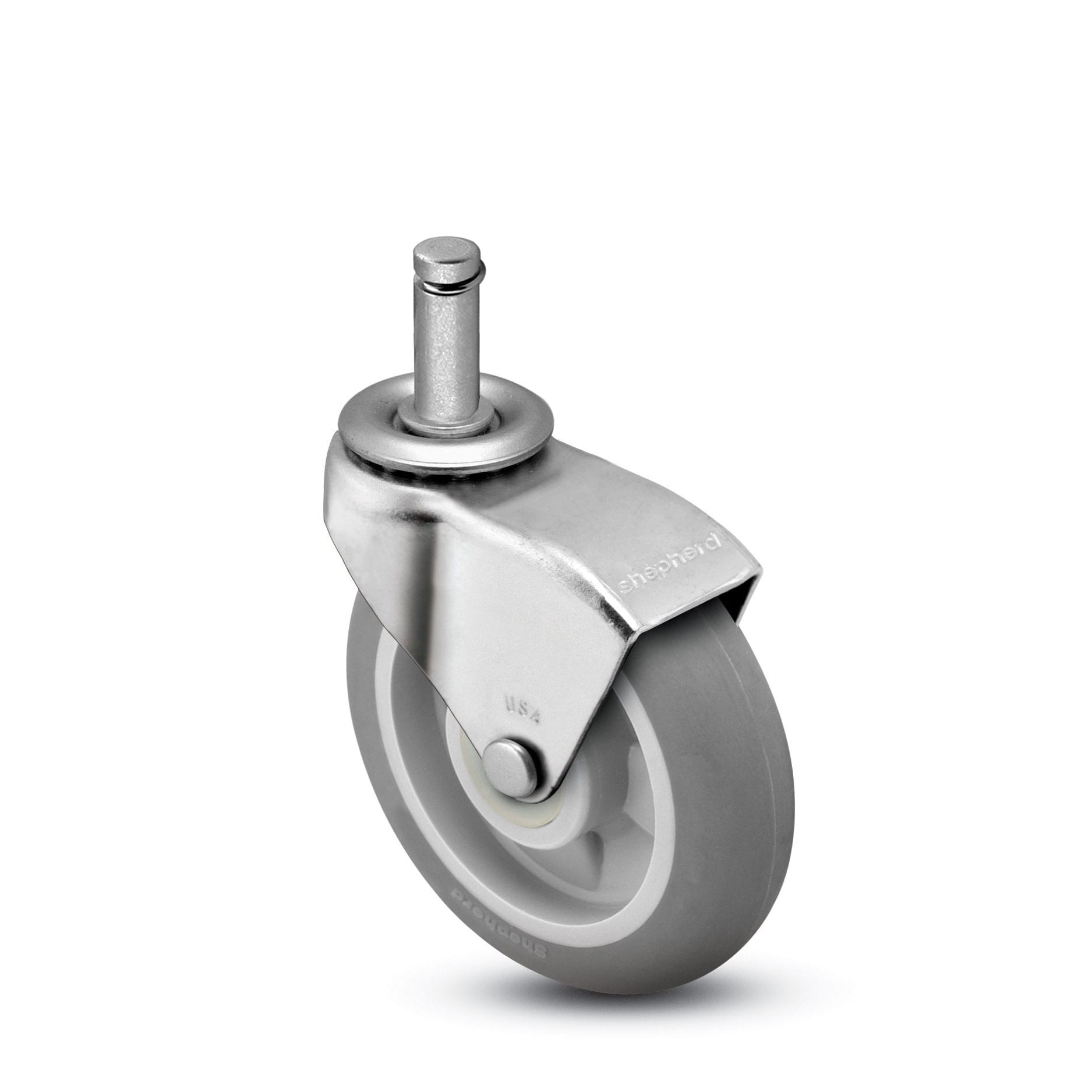

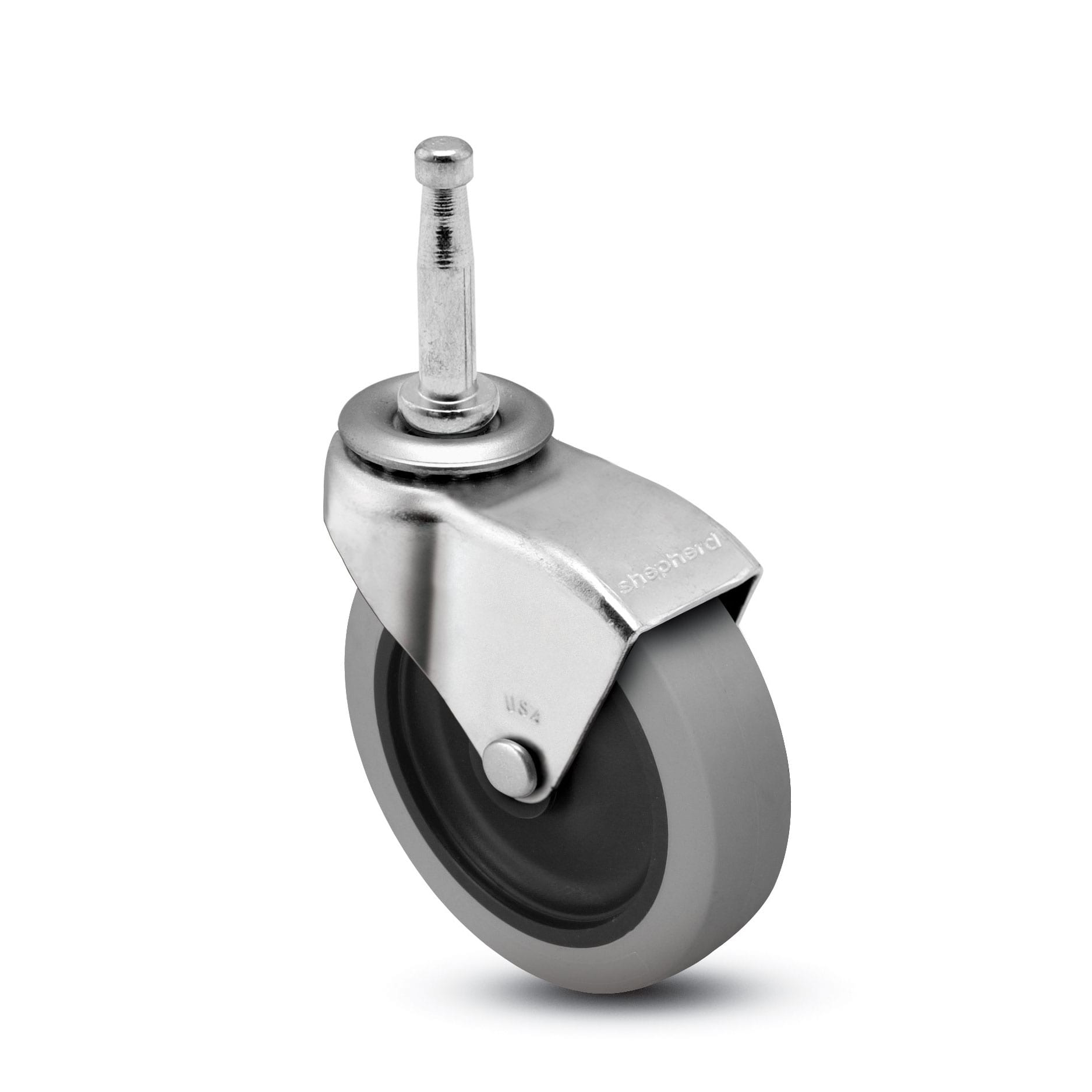

Monarch Grip Ring and Grip Neck Models
- Zinc Finish
- Double ball Bearing Raceways
- Octagon Washer on Threaded Steam
- Heat Treated raceways for increased wear and resistance
Features
- Equipment Carts
- Institutional Equipment
- Medical Equipment
- Furniture
Applications
- Finishes: Polished nickel (PN) available as special order. Minimum order quantities apply
- Fastenings: Others available
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 2" | 13/16" | Soft Rubber | 80 | 2-5/8" | 1-15/16" | PMN20302TZ-3R PMN20223TZ-3R PMN20211TZ-3R |
| 2" | 13/16" | TPR | 80 | 2-5/8" | 1-15/16" | PMN20302TZ-3E PMN20223TZ-3E PMN20211TZ-3E |
| 2" | 13/16" | Hard Rubber | 90 | 2-5/8" | 1-15/16" | PMN20302TZ-3H PMN20223TZ-3H PMN20211TZ-3H |
| 2" | 13/16" | Polyurethane | 90 | 2-5/8" | 1-15/16" | PMN20302TZ-TPU PMN20223TZ-TPU PMN20211TZ-TPU |
| 2" | 13/16" | Solid Polyolefin | 90 | 2-5/8" | 1-15/16" | PMN20302TZ-3ES PMN20223TZ-3ES PMN20211TZ-3ES |
| 2" | 3/4" | Polyolefin | 90 | 2-5/8" | 1-15/16" | PMN20302TZ-3E PMN20223TZ-3E PMN20211TZ-3E |
| 2" | 7/8" | Vipor | 90 | 2-5/8" | 1-15/16" | PMN20302TZ-VPR01(CG) PMN20223TZ-VPR01(CG) PMN20211TZ-VPR01(CG) |
| 2-1/2" | 13/16" | Soft Rubber | 80 | 3-1/8" | 2-1/8" | PMN25223TZ-3R PMN25211TZ-3R |
| 2-1/2" | 13/16" | TPR | 80 | 3-1/8" | 2-1/8" | PMN25223TZ-TPR PMN25211TZ-TPR |
| 2-1/2" | 13/16" | Hard Rubber | 95 | 3-1/8" | 2-1/8" | PMN25223TZ-3H PMN25211TZ-3H |
| 2-1/2" | 13/16" | Polyurethane | 95 | 3-1/8" | 2-1/8" | PMN25223TZ-TPU PMN25211TZ-TPU |
| 2-1/2" | 13/16" | Polyolefin | 95 | 3-1/8" | 2-1/8" | PMN25223TZ-3E PMN25211TZ-3E |
| 3" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PMN30223TZ-3R PMN30211TZ-3R |
| 3" | 13/16" | TPR | 110 | 3-1/2" | 2-1/2" | PMN30223TZ-TPR PMN30211TZ-TPR |
| 3" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PMN30223TZ-3H PMN30211TZ-3H |
| 3" | 13/16" | Polyurethane | 120 | 3-1/2" | 2-1/2" | PMN30223TZ-TPU PMN30211TZ-TPU |
| 3" | 13/16" | Polyolefin | 120 | 3-1/2" | 2-1/2" | PMN30223TZ-3E PMN30211TZ-3E |
| 3" | 13/16" | Monotech | 120 | 3-1/2" | 2-1/2" | PMN30223TZ-MNT PMN30211TZ-MNT |
| 3" | 13/16" | Vipor | 120 | 3-1/2" | 2-1/2" | PMN30223TZ-VPR01(CG) PMN30211TZ-VPR01(CG) |
