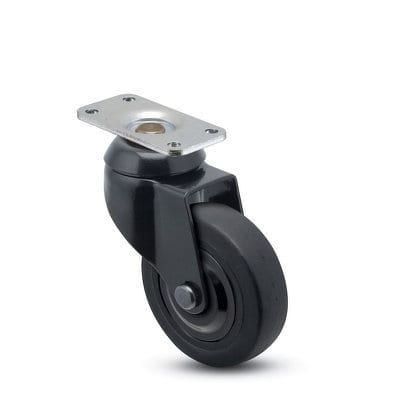

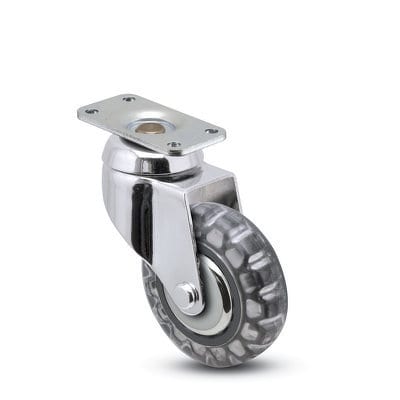

Swivel Top Plate Models
- Light duty totalock brake with matching swivel
- Fully heat treated
- Dual ball bearing raceways
- Matching thread guards standard
- Precision bearing wheels standard in neoprene and Vipor wheel models
- 5/16" nut and bolt axle
Features
- Medical Equipment
- Store Fixtures
- Institutional Equipment
- Electronic Equipment
- Mobile carts
- Furniture
Applications
- Total Lock Brake Locks both wheels and swivel action simultaneously
- Two position direction lock May be available as a special order
- Black finish is available with the Vipor wheel for a minimum purchase
Options
| Wheel Diameter | Thread With | Finish | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|---|
| 2" | 15/16 | Bright Chrome | Neoprene | 110 | 4" | 2-15/16" | PRS30140BC-NPR33(KK) | Precision Ball |
| 3" | 15/16 | Bright Chrome | Vipor | 120 | 4" | 2-15/16" | PRS30140BZ-VPR33(CK) | Precision Ball |
| 3" | 15/16 | Black | TPR (Black) | 110 | 4" | 2-15/16" | PRS30140BC-TPR03(KK) | Precision Ball |
| 3" | 15/16 | Bright Chrome | TPR (Grey) | 110 | 4" | 2-15/16" | PRS30140BC-TPR03(GG) | Precision Ball |
