Request a Quote It's Fast. It's Friendly. It's Free.

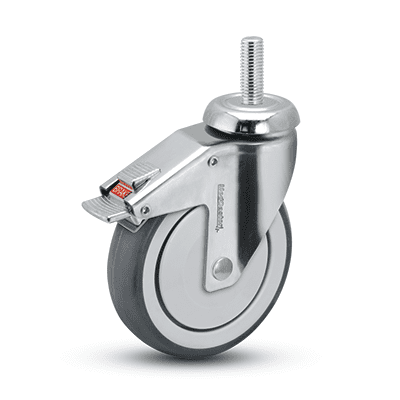

Hollow Kingpin Models
- 304 Stainless Steel, Polished
- Dual Ball Swivel Raceways for added strength
- Total Lock Brake models lock both swivel and wheel
- Directional lock models lock swivel only (helps with Steering)
- Precision ball bearings in wheels for easier rollability
- Wheels have full plastic thread guards for added protection
Features
- Food Service
- Case Carts
- Laboratory Equipment
- Institutional Equipment
- Medical Equipment
- Animal Cages
- Pharmaceutical Equipment
Applications
- Brakes: Total lock, Direction Lock
- Fastenings: Hollow Kingpin, Threaded Stem, Swivel Top Plate
- Finishes: Stainless Steel Finish
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|
| 3" | 1-1/4" | Thermoplastic Rubber | 190 | 4-5/16" | 2-29/32" | SS-03TPP-125-SW-HK01 | Precision Ball |
| 3 | 1-1/4 | Anti-Microbial TPR | 190 | 4-5/16 | 2-29/32 | SS-03AMP-125-SW-HK01 | Precision Ball |
| 3" | 1-1/4" | Polyurethane TPU | 190 | 4-5/16" | 2-29/32" | SS-03PYP-125-SW-HK01 | Precision Ball |
| 4" | 1-1/4" | Thermoplastic Rubber | 240 | 5-5/16" | 3-37/64" | SS-04TPP-125-SW-HK01 | Precision Ball |
| 4" | 1-1/4" | Anti-Microbial TPR | 240 | 5-5/16" | 3-37/64" | SS-04AMP-125-SW-HK01 | Precision Ball |
| 4" | 1-1/4" | Polyurethane TPU | 240 | 5-5/16" | 3-37/64" | SS-04PYP-125-SW-HK01 | Precision Ball |
| 5" | 1-1/4" | Thermoplastic Rubber | 260 | 6-5/16" | 4-7/32" | SS-05TPP-125-SW-HK01 | Precision Ball |
| 5" | 1-1/4" | Anti-Microbial TPR | 260 | 6-5/16" | 4-7/32" | SS-05AMP-125-SW-HK01 | Precision Ball |
| 5" | 1-1/4" | Polyurethane TPU | 260 | 6-5/16" | 4-7/32" | SS-05PYP-125-SW-HK01 | Precision Ball |
| 6" | 1-1/4" | Thermoplastic Rubber | 260 | 7-9/32" | 4-39/64" | SS-06TPP-125-SW-HK01 | Precision Ball |
| 6" | 1-1/4" | Anti-Microbial TPR | 260 | 7-9/32" | 4-39/64" | SS-06AMP-125-SW-HK01 | Precision Ball |
| 6" | 1-1/4" | Polyurethane TPU | 260 | 7-9/32" | 4-39/64" | SS-06PYP-125-SW-HK01 | Precision Ball |
