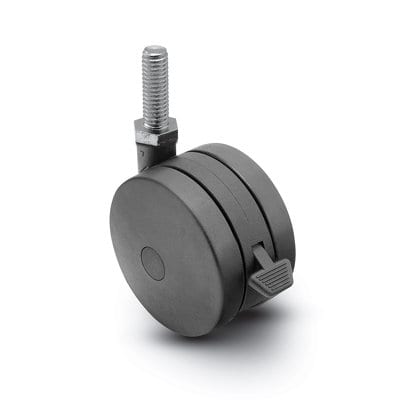

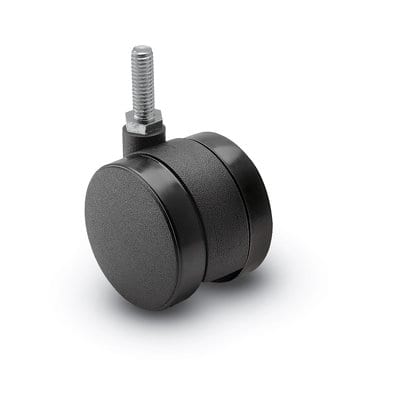

Unhooded Twin Wheel Threaded Stem Models
- Contemporary design
- Choice of nylon or urethane wheel
- Riveted axle for positive wheel retention on all except for 50mm and 60mm nylon models
Features
- Medical Equipment
- Utility Carts
- Furniture
- Store Fixtures
- Office Equipment
Applications
- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates
- Brakes: Available for all models
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Nylon | Black | 75 | 2-1/4" | 1-13/16" | PUT50507BK PUT50637BK PUT50634BK |
| 50mm | Urethane | Black | 75 | 2-1/4" | 1-13/16" | PUT50507BK-U PUT50637BK-U PUT50634BK-U |
| 60mm | Nylon | Black | 100 | 2-5/8" | 2-1/16" | PUT60507BK PUT60637BK PUT60634BK |
| 60mm | Urethane | Black | 100 | 2-5/8" | 2-1/16" | PUT60507BK-U PUT60637BK-U PUT60634BK-U |
| 75mm | Nylon | Black | 165 | 3-1/4" | 2-1/2" | PUT75507BK PUT75637BK PUT75634BK PUT75741BK PUT75748BK |
| 75mm | Urethane | Black | 165 | 3-1/4" | 2-1/2" | PUT75507BK-U PUT75637BK-U PUT75634BK-U PUT75741BK-U PUT75748BK-U |
| 100mm | Nylon | Black | 175 | 4-3/8" | 3-5/8" | PUT100637BK PUT100634BK PUT100741BK PUT100748BK |
| 100mm | Urethane | Black | 175 | 4-3/8" | 3-5/8" | PUT100637BK-U PUT100634BK-U PUT100741BK-U PUT100748BK-U |
| 125mm | Nylon | Black | 180 | 5-7/16" | 4-1/2" | PUT125741BK PUT125748BK |
| 125mm | Urethane | Black | 180 | 5-7/16" | 4-1/2" | PUT125741BK-U PUT125748BK-U |
