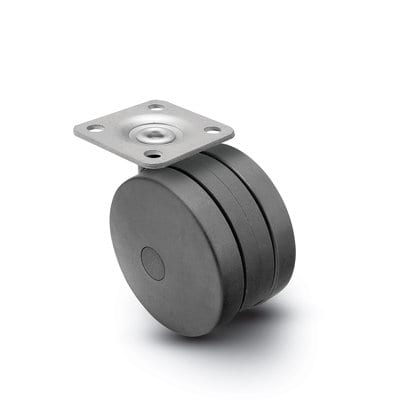

Unhooded Twin Wheel Top Plate Models
- Choice of nylon or urethane wheel
- Riveted axle for positive wheel retention on all except for 50mm and 60mm nylon models
Features
- Medical Equipment
- Utility Carts
- Furniture
- Store Fixtures
- Office Equipment
Applications
- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates
- Brakes: Available for all models
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Nylon | Black | 75 | 2-1/4" | 1-13/16" | PUT50101BK |
| 50mm | Urethane | Black | 75 | 2-1/4" | 1-13/16" | PUT50101BK-U |
| 60mm | Nylon | Black | 100 | 2-5/8" | 2-1/16" | PUT60101BK |
| 60mm | Urethane | Black | 100 | 2-5/8" | 2-1/16" | PUT60101BK-U |
| 75mm | Nylon | Black | 165 | 3-1/4" | 2-1/2" | PUT75101BK PUT75120BK PUT75116BK |
| 75mm | Urethane | Black | 165 | 3-1/4" | 2-1/2" | PUT75101BK-U PUT75120BK-U PUT75116BK-U |
| 100mm | Nylon | Black | 175 | 4-3/8" | 3-5/8" | PUT100120BK PUT100116BK |
| 100mm | Urethane | Black | 175 | 4-3/8" | 3-5/8" | PUT100120BK-U PUT100116BK-U |
| 125mm | Nylon | Black | 180 | 5-7/16" | 4-1/2" | PUT125120116BK |
| 125mm | Urethane | Black | 180 | 5-7/16" | 4-1/2" | PUT125120BK-U PUT125116BK-U |
