Colson · Light-duty institutional and office
In StockCOLSON 1 SERIES
The Colson 1 Series is the workhorse of light-duty institutional and office casters. Designed for chairs, light carts, audio-visual stands, and small fixtures, the 1 Series combines proven Colson reliability with quiet operation and floor protection.
SKU Count
609
Capacity
60–145 lbs
Wheel ⌀
1.625″–5″
Mounts
13 types

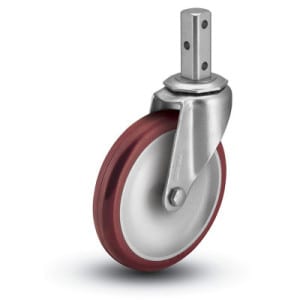

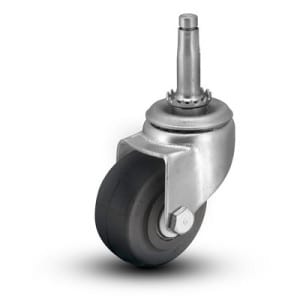

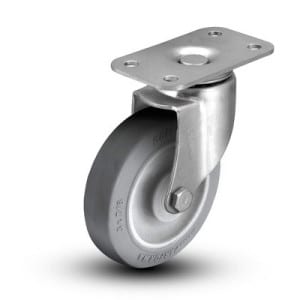

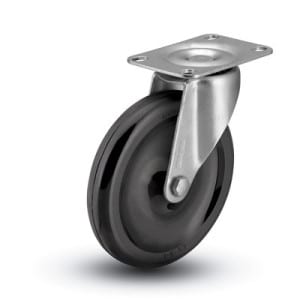

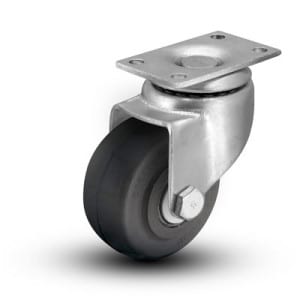

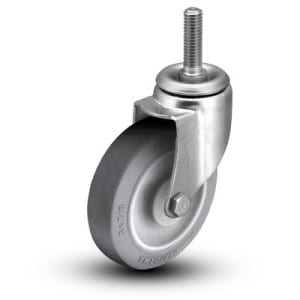

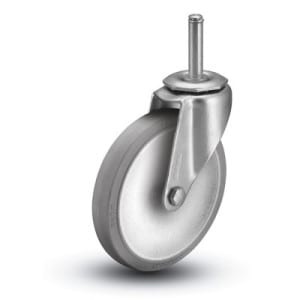

Product Photography
COLSON 1 SERIES Gallery
3 photosCommon Applications
Where It's Specified
- Office chairs and light furniture
- A/V carts and projector stands
- Light-duty institutional carts
- Cabinet and fixture mobility
- Small medical instrument stands
SKU catalog · live filter
Browse 609 SKUs
Filter by capacity, wheel diameter, tread, mount, brake. Stocked or quoted from Miami.
Showing 12of 609 SKUs
| Part # | Capacity | Wheel ⌀ | Tread | Mount | Brake | Bearing | Action |
|---|---|---|---|---|---|---|---|
| 1.01652.441 | 60 lbs | 1.625″ | Performa Rubber (Flat/Grey) | Wood Furniture Stem | N/A | Delrin | |
| 1.03051.91 MTG1 BRK3 | 75 lbs | 3″ | Polyurethane HI-TECH | Grip Ring Stem up to 75 lbs | Side Lock Brake (BRK3) | Delrin | |
| 1.02251.55 MTG57 | 75 lbs | 2″ | Hard Rubber | Grip Ring Stem up to 75 lbs | N/A | Ball | |
| 1.03066.53 TG1 | 75 lbs | 3″ | Polyolefin | Small Top Plate Swivel up to 75 lbs | None | Delrin | |
| 1.03367.91 MTG43 BRK3 | 100 lbs | 3″ | Polyurethane HI-TECH | Expanding Adapter Stem | Side Lock Brake (BRK3) | Delrin | |
| 1.03351.53 MTG2 | 125 lbs | 3″ | Polyolefin | Grip Ring Stem up to 145 lbs | None | Delrin | |
| 1.03367.53 MTG43 BRK3 | 125 lbs | 3″ | Polyolefin | Expanding Adapter Stem | Side Lock Brake (BRK3) | Delrin | |
| 1.04367.91 MTG52 BRK3 | 125 lbs | 4″ | Polyurethane HI-TECH | Expanding Adapter Stem | Side Lock Brake (BRK3) | Delrin | |
| 1.03008.441 TG1 | 125 lbs | 3″ | Performa Rubber (Flat/Grey) | Large Top Plate Rigid up to 145 lbs | N/A | Delrin | |
| 1.04367.53 MTG47 | 135 lbs | 4″ | Polyolefin | Expanding Adapter Stem | None | Delrin | |
| 1.05367.91 MTG43 | 140 lbs | 5″ | Polyurethane HI-TECH | Expanding Adapter Stem | None | Delrin | |
| 1.05367.53 MTG41 BRK3 | 145 lbs | 5″ | Polyolefin | Expanding Adapter Stem | Side Lock Brake (BRK3) | Delrin |
Showing 12 featured SKUs · refine filters to load more
Need help specifying?
Caster specification is a multi-variable problem: load, floor type, tread material, mounting, environment, brake. We've solved it tens of thousands of times since 1955. Call us with your application — we'll spec the right SKU with you.
